TLV320AIC23PWR - Texas Instruments

Description: Interface - CODECs Low-Power Portable Aud Converter

Download TLV320AIC23PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

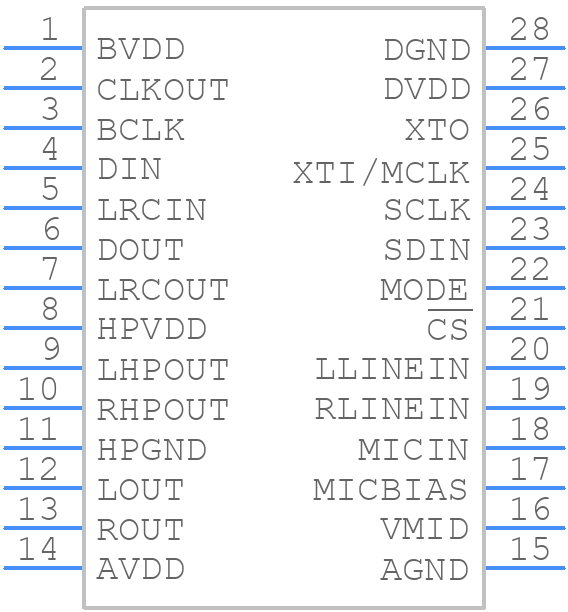

TLV320AIC23PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC23PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28
click to zoom
3D Models
TLV320AIC23PWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28
click to zoom

TLV320AIC23PWR Details

  • Manufacturer Part Number:

    TLV320AIC23PWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.42V TO 3.6V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV320AIC23PWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC23PWR for stereo audio, set the STEREO pin high and use the I2S interface. The device will then output stereo audio data on the DOUT pins.
  • The maximum clock frequency supported by the TLV320AIC23PWR is 50 MHz. However, the recommended clock frequency is 12.288 MHz for most audio applications.
  • To reduce power consumption, use the power-down modes (PDWN pin) to shut down the device when not in use. Additionally, adjust the clock frequency and analog supply voltage to the minimum required for the application.
  • The recommended layout and routing for the TLV320AIC23PWR involves separating the analog and digital signals, using a solid ground plane, and minimizing the length of the clock signal traces. Refer to the datasheet and application notes for more detailed guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC23PWR Overview

Use the download button to access the TLV320AIC23PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs
