TLV320AIC26IRHB - Texas Instruments

Description: Low-Power Mono ADC / Stereo DAC with HP/Speaker Amplifier and 12-bit measurement ADC

Download TLV320AIC26IRHB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

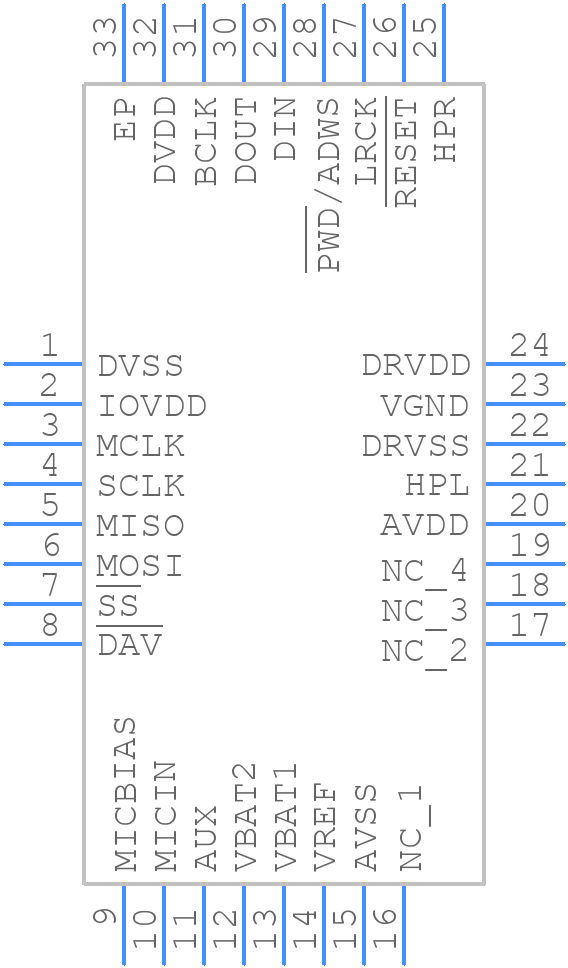

Symbol
TLV320AIC26IRHB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC26IRHB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom
3D Models
TLV320AIC26IRHB - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom

TLV320AIC26IRHB Details

  • Manufacturer Part Number:

    TLV320AIC26IRHB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 1.525V TO 1.95V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC26IRHB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC26IRHB can be configured for stereo or mono operation by setting the appropriate bits in the Audio Interface Format Register (AIFR). For stereo operation, set bits [7:6] to '10', and for mono operation, set bits [7:6] to '00'.
  • The maximum input signal level that the TLV320AIC26IRHB can handle is 2.2 Vrms for the analog-to-digital converter (ADC) and 1.5 Vrms for the digital-to-analog converter (DAC). Exceeding these levels may result in signal distortion or clipping.
  • To optimize the TLV320AIC26IRHB for low power consumption, set the Power Management Register (PMR) to enable the low-power mode, reduce the clock frequency, and disable unused features such as the PLL and the ADC/DAC when not in use.
  • The recommended layout and routing for the TLV320AIC26IRHB involves separating the analog and digital signals, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC26IRHB Overview

Use the download button to access the TLV320AIC26IRHB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
