The recommended power-up sequence is to power up the digital supply (DVDD) first, followed by the analog supply (AVDD). This ensures that the digital circuitry is powered up before the analog circuitry to prevent any unwanted analog signals from being generated.
The TLV320AIC29IRGZT has a variety of configuration options that can be set through its control registers. The specific configuration will depend on the application requirements, such as sample rate, bit depth, and audio interface. Refer to the datasheet and application notes for guidance on configuring the device for a specific application.
The maximum input signal level that the TLV320AIC29IRGZT can handle is dependent on the specific input configuration and the gain setting. In general, the device can handle input signals up to 2.5Vrms. However, it's recommended to consult the datasheet and application notes for specific guidance on input signal levels and gain settings.
To optimize the TLV320AIC29IRGZT for low power consumption, it's recommended to use the device's power-down modes, adjust the clock frequency, and optimize the analog and digital supply voltages. Additionally, using the device's built-in power-saving features, such as automatic gain control and dynamic voltage scaling, can also help reduce power consumption.
The latency of the TLV320AIC29IRGZT is dependent on the specific configuration and application. In general, the device has a latency of around 1-2 ms. However, this can vary depending on the sample rate, bit depth, and audio interface. Refer to the datasheet and application notes for specific guidance on latency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV320AIC29IRGZT Overview

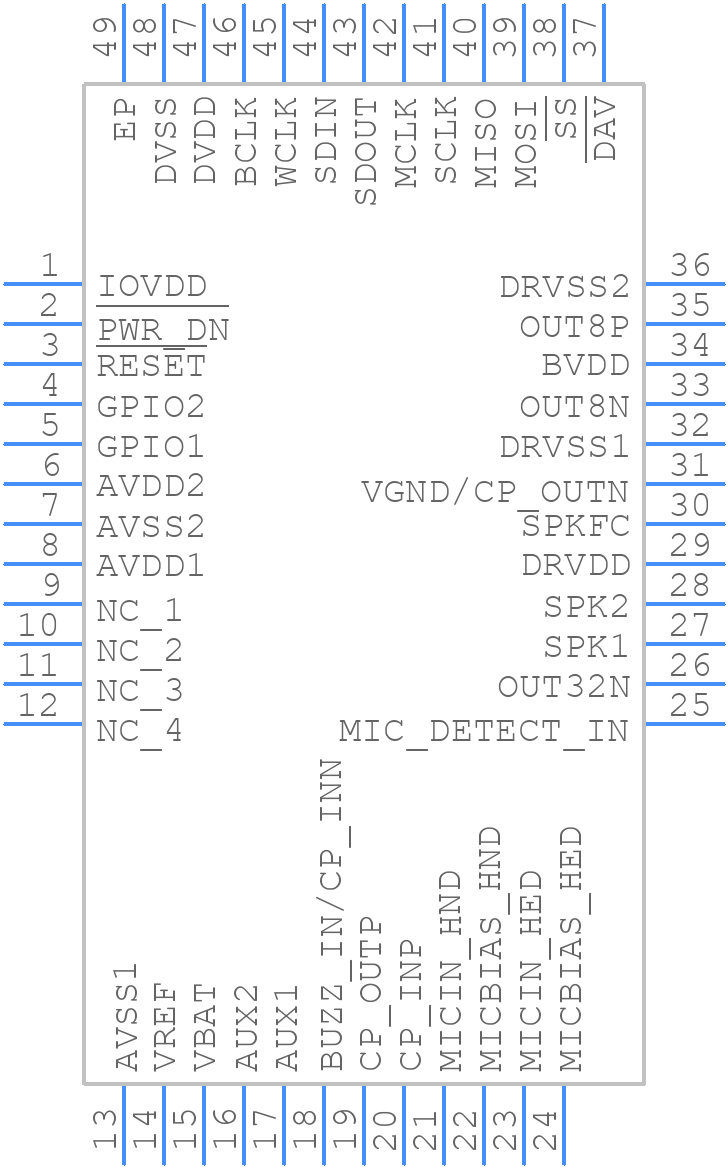

Use the download button to access the TLV320AIC29IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32,
or try a keyword search, such as Other Consumer ICs
