TLV320AIC3206IYZFT - Texas Instruments

Description: Very-Low-Power Stereo Codec With DirectPath™ HP Amplifier

Download TLV320AIC3206IYZFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

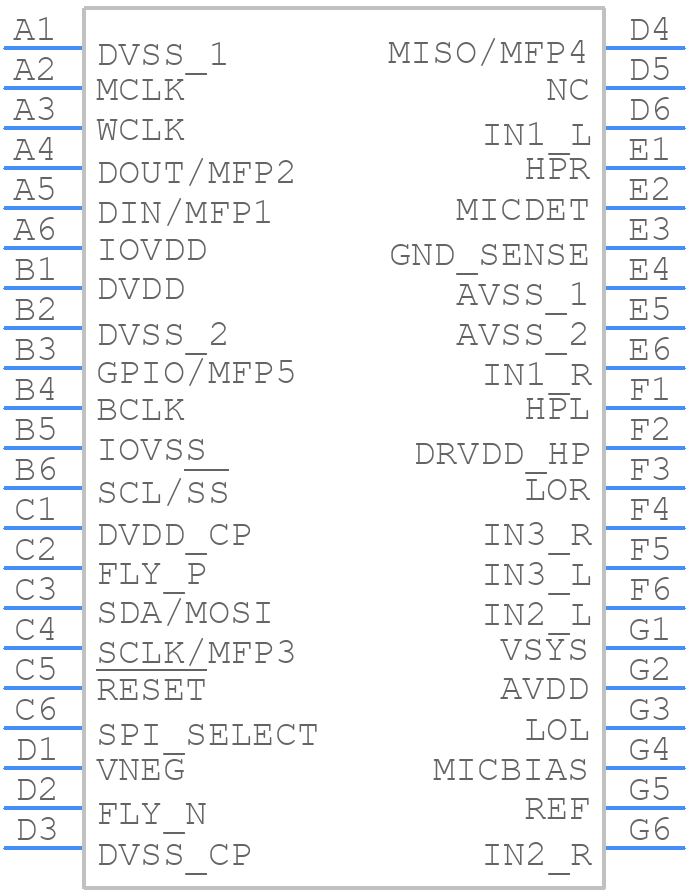

TLV320AIC3206IYZFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC3206IYZFT - Texas Instruments PCB footprint - BGA - BGA - yzf(r-xbga-n42)
click to zoom
3D Models
TLV320AIC3206IYZFT - Texas Instruments - 3D model - BGA - yzf(r-xbga-n42)
click to zoom

TLV320AIC3206IYZFT Details

  • Manufacturer Part Number:

    TLV320AIC3206IYZFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Filter:

    YES

  • Input Type:

    SINGLE-ENDED/DIFF

  • JESD-30 Code:

    R-PBGA-B42

  • JESD-609 Code:

    e1

  • Length:

    3.469 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.269 mm

TLV320AIC3206IYZFT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC3206 for stereo audio, set the STEREO bit in the Audio Interface Control Register (AICx_CTRL) to 1. This enables stereo mode and allows the device to process left and right audio channels separately.
  • The maximum input signal level that the TLV320AIC3206 can handle is 2.2 Vrms. Exceeding this level may result in distortion or clipping of the audio signal.
  • To optimize the TLV320AIC3206 for low power consumption, use the Power Management Register (PMCTRL) to enable power-down modes for unused blocks, reduce the clock frequency, and adjust the bias voltage. Additionally, use the Dynamic Voltage Scaling (DVS) feature to reduce power consumption during periods of low audio activity.
  • The recommended layout and routing for the TLV320AIC3206 involves keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches. Additionally, place decoupling capacitors close to the device and use a common mode filter to reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC3206IYZFT Overview

Use the download button to access the TLV320AIC3206IYZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Codecs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TLV320AIC3206IYZFT
