TLV320AIC32IRHBT - Texas Instruments

Description: TLV320AIC32IRHBT, Audio Codec Stereo-channel 32bit- 96ksps Serial-I2C, Serial-I2S 32-Pin QFN

Download TLV320AIC32IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

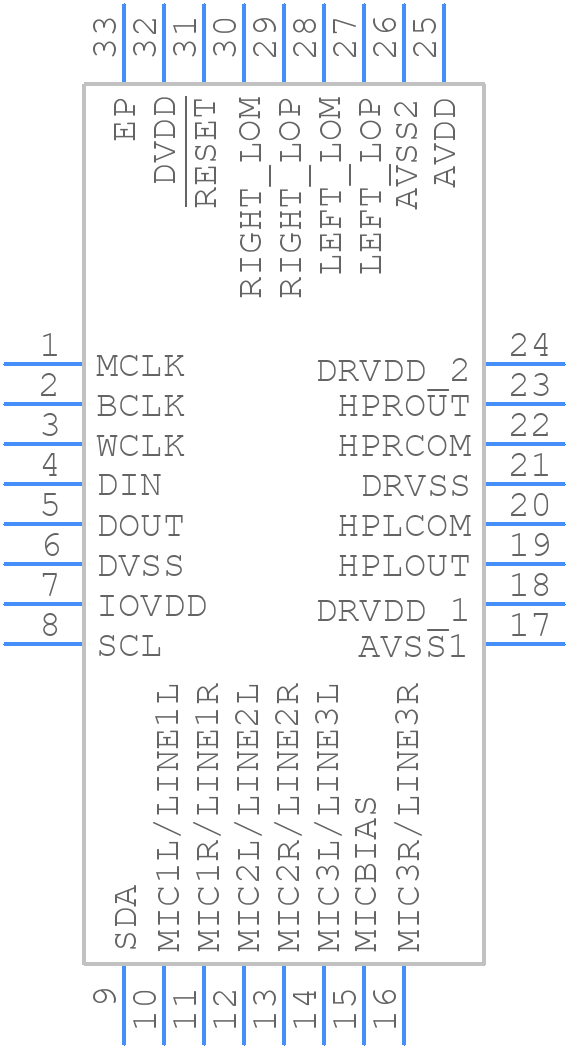

TLV320AIC32IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC32IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TLV320AIC32IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TLV320AIC32IRHBT Details

  • Manufacturer Part Number:

    TLV320AIC32IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 1.525V TO 1.95V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC32IRHBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC32IRHBT can be configured using the I2C or SPI interface. The device has multiple registers that control various functions such as gain, mute, and clocking. Refer to the datasheet and application notes for specific configuration examples.
  • The maximum input signal level for the TLV320AIC32IRHBT is 2.2 Vrms. Exceeding this level may result in distortion or damage to the device.
  • To optimize the TLV320AIC32IRHBT for low power consumption, use the power-down modes, reduce the clock frequency, and adjust the analog and digital gains. Additionally, consider using the device's built-in power-saving features such as the automatic gain control (AGC) and the digital microphone interface (DMI).
  • The recommended layout and routing for the TLV320AIC32IRHBT involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the device is placed close to the analog and digital power supplies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV320AIC32IRHBT Overview

Use the download button to access the TLV320AIC32IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs
