TLV320AIC33IRGZT - Texas Instruments

Description: Low-Power Stereo CODEC with 10 Inputs, 7 Outputs, HP/Speaker Amplifier and Enhanced Digital Effects

Download TLV320AIC33IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

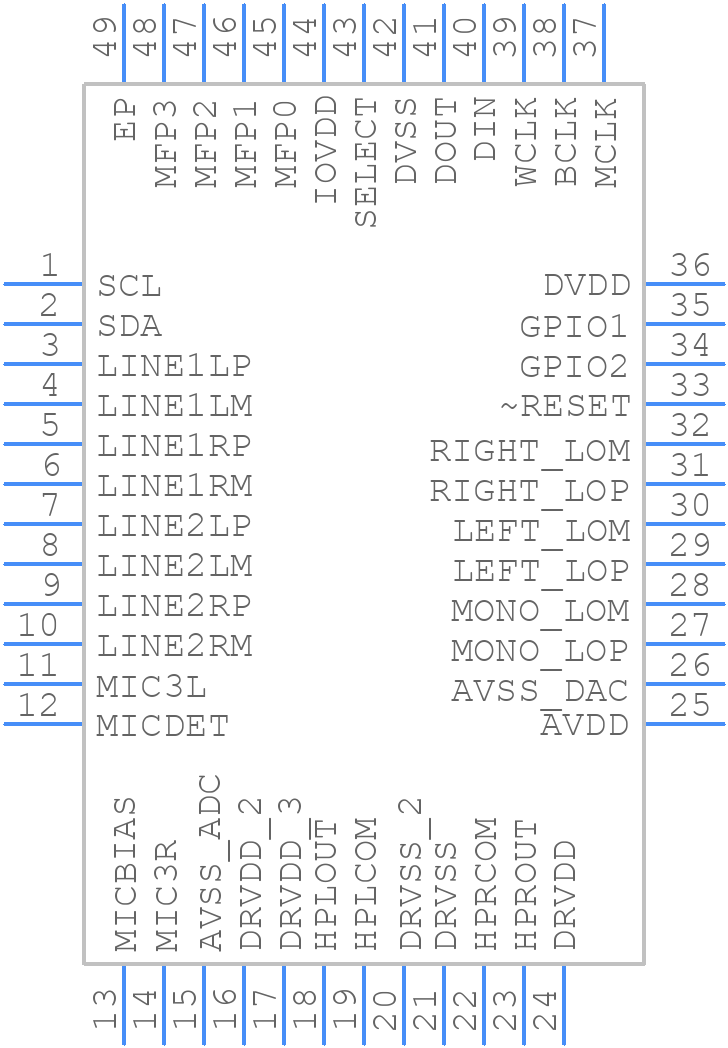

TLV320AIC33IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC33IRGZT - Texas Instruments PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
TLV320AIC33IRGZT - Texas Instruments - 3D model - Other - QFN50P700X700X100-49N
click to zoom

TLV320AIC33IRGZT Details

  • Manufacturer Part Number:

    TLV320AIC33IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TLV320AIC33IRGZT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC33IRGZT for stereo audio, set the STEREO bit in the Audio Interface Control Register (AICR) to 1. This enables stereo mode and allows for independent left and right channel audio processing.
  • The maximum input signal level for the TLV320AIC33IRGZT is 2.2 Vrms. Exceeding this level may result in signal distortion or clipping.
  • To optimize the TLV320AIC33IRGZT for low power consumption, use the Power Management Register (PMR) to enable power-down modes for unused blocks, reduce the clock frequency, and adjust the voltage regulator settings.
  • For optimal performance, keep analog and digital signals separate, use a solid ground plane, and minimize trace lengths and impedance mismatches. Also, ensure that the device is placed near the audio connectors to minimize noise and interference.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TLV320AIC33IRGZT Overview

Use the download button to access the TLV320AIC33IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs
