The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This sequence helps to prevent unwanted digital noise from coupling into the analog circuitry.
To optimize performance, use a low-noise power supply, decouple the power pins with capacitors, and use a high-quality clock source. Additionally, ensure that the analog and digital grounds are separated and connected at a single point to prevent ground loops.
The TLV320DAC23PW can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
Yes, the TLV320DAC23PW can be used in a differential output configuration. In this configuration, the output voltage swing is doubled, and the common-mode voltage is reduced, resulting in improved noise rejection and distortion performance.
The TLV320DAC23PW is a digital-to-analog converter, and the output voltage or current is determined by the digital input code. The output voltage or current can be calculated using the formula provided in the datasheet, and the digital input code can be programmed using a microcontroller or other digital interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV320DAC23PW Overview

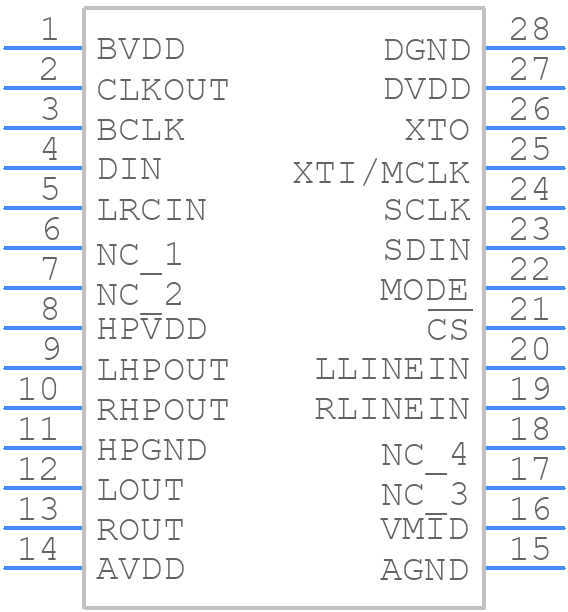

Use the download button to access the TLV320DAC23PW schematic symbol, PCB footprint, and 3D model.
