It is recommended to place the TLV3502AIDCNTG4 close to the analog signal source, use a solid ground plane, and keep the input traces short and shielded to minimize noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
The TLV3502AIDCNTG4 requires a single 2.7V to 5.5V power supply. It is recommended to use a low-dropout regulator (LDO) to power the device, and to sequence the power-on in the following order: VCC, then VIN. Ensure that the power supply is stable and well-regulated to prevent noise and oscillations.
The TLV3502AIDCNTG4 can handle input voltages up to 6V without damage, but it is recommended to limit the input voltage to 5.5V or less to ensure optimal performance and prevent overheating.
To optimize the TLV3502AIDCNTG4 for low-power operation, use a low-power mode (e.g., shutdown mode) when the device is not in use, reduce the input frequency, and use a low-power supply voltage (e.g., 2.7V). Additionally, consider using a power-gating technique to reduce power consumption.
The TLV3502AIDCNTG4 has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at high ambient temperatures (above 85°C).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV3502AIDCNTG4 Overview

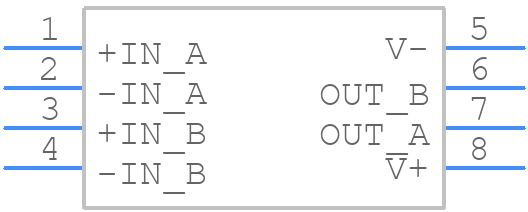

Use the download button to access the TLV3502AIDCNTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV35,
or try a keyword search, such as Comparators
