A good PCB layout for the TLV3605RVKR involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and EMI.
To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor close to the device. Also, ensure that the input voltage is within the recommended range, and the output is not overloaded. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help dampen oscillations.
The TLV3605RVKR can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and adjust the output current accordingly to avoid overheating.
The TLV3605RVKR is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure good thermal management to prevent overheating. Additionally, consider using a heat sink or thermal pad to improve heat dissipation.
To troubleshoot issues with the TLV3605RVKR, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, check the device's thermal performance and adjust the output current or add heat sinking as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV3605RVKR Overview

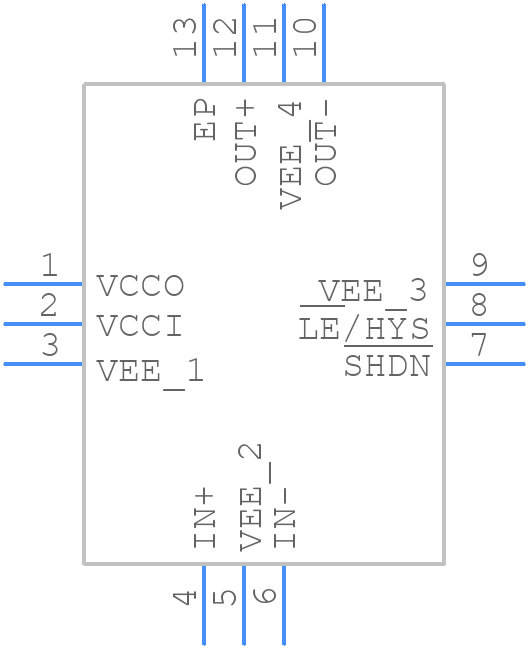

Use the download button to access the TLV3605RVKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV36,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
