TLV3605RVKT - Texas Instruments

Description: Analog Comparators 800-ps high-speed rail-rail input comparator with LVDS outputs 12-WQFN -40 to 125

Download TLV3605RVKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

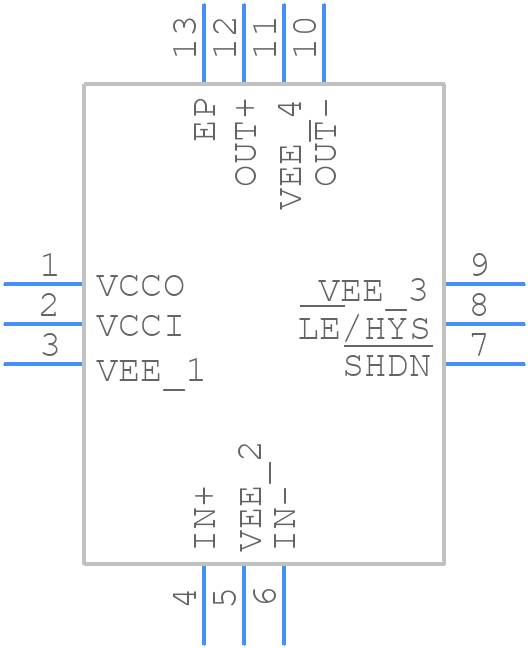

Symbol
TLV3605RVKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV3605RVKT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RVK(S-PWQFN-N12)
click to zoom
3D Models
TLV3605RVKT - Texas Instruments - 3D model - Quad Flat No-Lead - RVK(S-PWQFN-N12)
click to zoom

TLV3605RVKT Details

  • Manufacturer Part Number:

    TLV3605RVKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    0.8 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV3605RVKT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the input capacitors, and the output capacitors placed close to the load. A star-ground configuration is also recommended to minimize noise and EMI.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor's ESR is less than 1 ohm. Additionally, place a 1nF to 10nF capacitor between the VIN and EN pins to filter noise and prevent oscillations.
  • Although the datasheet specifies a maximum input voltage of 5.5V, the device can handle up to 6V for short durations (less than 1 second) without damage. However, it's recommended to operate within the specified range for optimal performance and reliability.
  • The TLV3605RVKT is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (fsw * Cout), where Iout is the output current, ESR is the output capacitor's equivalent series resistance, fsw is the switching frequency, and Cout is the output capacitance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV3605RVKT Overview

Use the download button to access the TLV3605RVKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV36, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
