Part Image

TLV3801DSGR - Texas Instruments

Description: Comparator Standard (General Purpose) Complementary 8-WSON (2x2) , 2.7V ~ 4.2V , 26.6mA , -40°C ~ 125°C

Download TLV3801DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

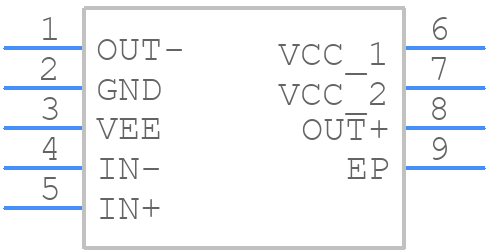

Symbol
TLV3801DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV3801DSGR - Texas Instruments PCB footprint - Other - Other - DSG0008B_2025-1.1
click to zoom
3D Models
TLV3801DSGR - Texas Instruments - 3D model - Other - DSG0008B_2025-1.1
click to zoom

TLV3801DSGR Details

  • Manufacturer Part Number:

    TLV3801DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    0.225 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    26.6 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TLV3801DSGR Frequently Asked Questions (FAQs)

  • The TLV3801DSGR is a sensitive device and requires careful layout and placement to ensure proper operation. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and interference.
  • The TLV3801DSGR has a typical output voltage tolerance of ±1.5%. To handle this tolerance, it is recommended to use a voltage regulator with a tighter output voltage tolerance or to add an external voltage trimming circuit to adjust the output voltage to the desired level.
  • The TLV3801DSGR can handle input voltages up to 6V, but it is recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure proper operation and to prevent damage to the device.
  • To ensure proper power-up and power-down of the TLV3801DSGR, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up.
  • The TLV3801DSGR is specified to operate over a temperature range of -40°C to 125°C, but it is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV3801DSGR Overview

Use the download button to access the TLV3801DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV38, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
