- Part Number TLV3801DSGT
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DSG0008B
- Released Date Jul 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLV3801DSGT Details
-
Manufacturer Part Number:
TLV3801DSGT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Amplifier Type:
COMPARATOR
-
Average Bias Current-Max (IIB):
10 µA
TLV3801DSGT Frequently Asked Questions (FAQs)
-
The TLV3801DSGT is a sensitive device and requires careful layout and placement to ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding noise sources. A good practice is to follow the layout guidelines provided in the datasheet and application notes.
-
The TLV3801DSGT has a typical output voltage tolerance of ±1.5%. To achieve better accuracy, it's recommended to use a voltage reference with a tighter tolerance, such as the TLV431 or TLV4051. Additionally, consider using a voltage divider network to adjust the output voltage to the desired level.
-
The TLV3801DSGT can drive a maximum capacitive load of 10nF. Exceeding this limit may cause oscillations or instability. If a larger capacitive load is required, consider adding a series resistor to limit the capacitive current.
-
To ensure stability, follow the recommended layout and placement guidelines, use a sufficient decoupling capacitor (e.g., 10uF), and avoid long traces and loops. Additionally, consider adding a series resistor (e.g., 10Ω) to the output to prevent oscillations.
-
The TLV3801DSGT can operate with an input voltage range of 2.7V to 5.5V. However, it's recommended to operate within the 3.3V to 5V range for optimal performance and stability.
Trust Checks
Community Provided
System Verified
Community Approved
TLV3801DSGT Overview

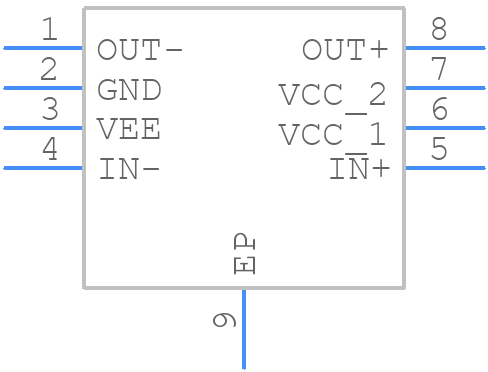

Use the download button to access the TLV3801DSGT schematic symbol, PCB footprint, and 3D model.
