Texas Instruments recommends a compact layout with the TLV3801QDSGRQ1 placed close to the sensing node, and the input pins (IN+ and IN-) should be routed together to minimize noise. Additionally, a ground plane under the device is recommended to reduce electromagnetic interference (EMI).
The TLV3801QDSGRQ1 is specified to operate from -40°C to 125°C. Ensure that the device is not exposed to temperatures outside this range during operation, storage, or handling. Also, consider the thermal resistance of the package and the PCB layout to ensure that the junction temperature does not exceed the maximum rating.
Texas Instruments recommends powering up the TLV3801QDSGRQ1 with a single power supply (VCC) and ensuring that the input voltage (VIN) is within the specified range before applying the power supply. A slow power-up ramp (e.g., 1 ms to 10 ms) is also recommended to prevent voltage overshoots.
To minimize EMI and RFI, use a shielded enclosure, keep the TLV3801QDSGRQ1 away from noise sources, and use a low-pass filter or a ferrite bead on the power supply lines. Additionally, ensure that the PCB layout is designed to minimize radiation and that the device is properly grounded.
Texas Instruments recommends using a logic analyzer or an oscilloscope to monitor the input and output signals of the TLV3801QDSGRQ1. Additionally, ensure that the power supply is clean and stable, and that the device is properly configured and initialized. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV3801QDSGRQ1 Overview

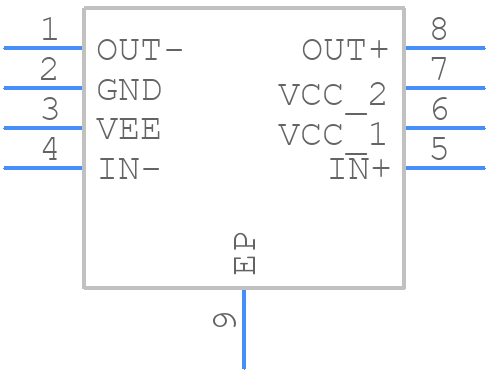

Use the download button to access the TLV3801QDSGRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV38,
or try a keyword search, such as Comparators
