Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a solid ground plane and to avoid routing digital signals under the device.
The internal reference voltage of the TLV5613CDW is 2.5V, and it's recommended to use a bypass capacitor of 10nF to 100nF between the REF pin and GND to reduce noise. If an external reference voltage is used, it should be within the range of 2.2V to 2.7V, and the REF pin should be connected to the external reference voltage through a voltage divider network.
The maximum clock frequency for the TLV5613CDW is 20MHz, and using a higher clock frequency may result in increased power consumption, reduced accuracy, and potential instability. It's recommended to use a clock frequency of 10MHz or lower for optimal performance.
The TLV5613CDW has a built-in POR and BOR circuitry that resets the device during power-on and brown-out conditions. The POR threshold is 1.8V, and the BOR threshold is 1.6V. It's recommended to use a power-on reset circuit or a supervisor IC to ensure a clean power-on reset and to prevent the device from operating in an undefined state.
The recommended operating temperature range for the TLV5613CDW is -40°C to 125°C. Operating outside this range may result in reduced accuracy, increased power consumption, and potential device failure. It's recommended to use thermal management techniques, such as heat sinks or thermal interfaces, to maintain the device temperature within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5613CDW Overview

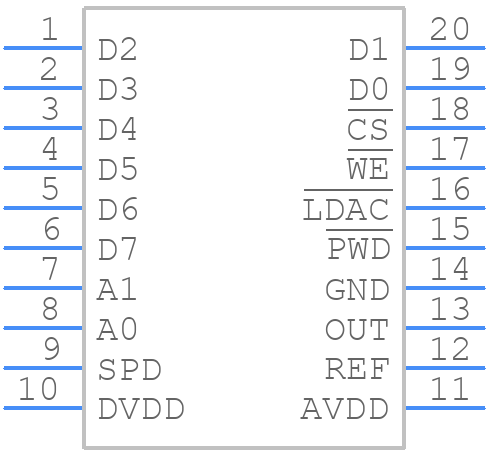

Use the download button to access the TLV5613CDW schematic symbol, PCB footprint, and 3D model.
