TLV5619CPW - Texas Instruments

Description: 12-Bit, Single Channel DAC, Parallel, Voltage Out, Low Power, Asynchronous Update

Download TLV5619CPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

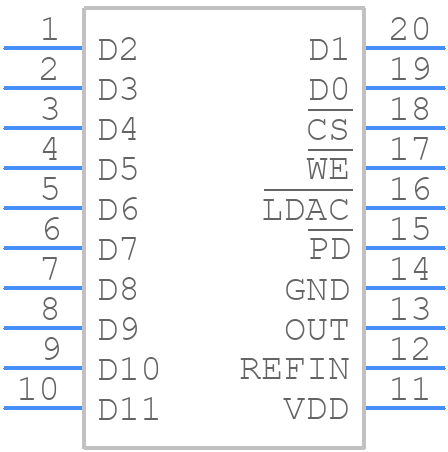

TLV5619CPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5619CPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TLV5619CPW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TLV5619CPW Details

  • Manufacturer Part Number:

    TLV5619CPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    3 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV5619CPW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. The device should be placed on a solid ground plane, and the analog and digital supplies should be decoupled with 0.1 μF and 10 μF capacitors, respectively.
  • The internal reference voltage of the TLV5619CPW is 2.5 V, and it is recommended to buffer it with an external op-amp or voltage follower to prevent loading and ensure accuracy. The reference voltage can also be bypassed with an external reference voltage if required.
  • The TLV5619CPW can handle clock frequencies up to 50 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information.
  • The TLV5619CPW can be programmed for different output voltage ranges using the VREF and VOUT pins. The VREF pin sets the reference voltage, and the VOUT pin sets the output voltage range. The device can be programmed for output voltage ranges from 0 V to 5 V, 0 V to 10 V, or -5 V to 5 V, depending on the application requirements.
  • The TLV5619CPW has a built-in power-on reset (POR) circuit that ensures the device is in a known state after power-up. The POR circuit holds the device in a reset state until the power supplies have reached a minimum threshold, and then releases the reset to allow the device to start operating normally.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5619CPW Overview

Use the download button to access the TLV5619CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
