Texas Instruments provides a recommended layout and placement guide in the TLV5619CPWR datasheet, but it's also important to follow general PCB design best practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure accurate voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the recommended input voltage range. Additionally, the device should be operated within its specified temperature range, and the output voltage should be monitored to ensure it remains within the specified tolerance.
The TLV5619CPWR has a maximum output current capability of 150mA, but this can be limited by the thermal performance of the device and the PCB. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the maximum expected current.
The TLV5619CPWR has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features, but it's still important to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to ensure that the device is protected from extreme voltage conditions.
The recommended input voltage range for the TLV5619CPWR is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V. However, the output voltage regulation may be affected at lower input voltages.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV5619CPWR Overview

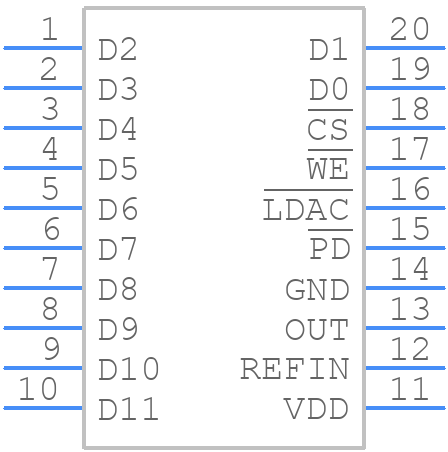

Use the download button to access the TLV5619CPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
