The TLV5621ID is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and decoupling capacitors are also crucial.
The output filter depends on the specific application requirements. For a simple RC filter, TI recommends a 1 kΩ resistor and a 10 nF capacitor. However, for more complex filters, consider using a 2nd-order or 3rd-order filter with a cutoff frequency around 100 kHz to 200 kHz. Always simulate and test the filter design to ensure it meets the required specifications.
The TLV5621ID has an absolute maximum input voltage rating of 6.5 V. However, the recommended operating input voltage range is 2.7 V to 5.5 V. Exceeding the maximum input voltage can damage the device or affect its performance.
The TLV5621ID has a power-on reset (POR) circuit that ensures the device is properly initialized. To ensure a clean power-up, TI recommends a slow power-up ramp (typically 1 ms to 10 ms) and a stable input voltage. Additionally, the EN pin should be tied to a logic high or connected to a pull-up resistor to enable the device.
The settling time of the TLV5621ID depends on the output voltage, load capacitance, and other factors. Typically, the device settles within 10 μs to 50 μs after a voltage change. However, this can vary depending on the specific application and requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV5621ID Overview

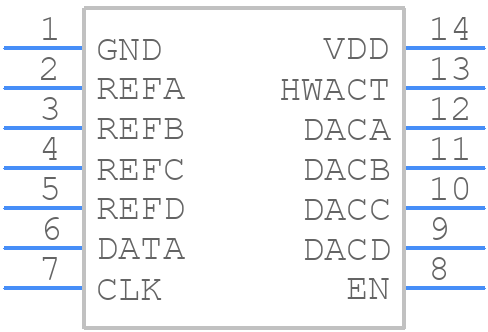

Use the download button to access the TLV5621ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
