Texas Instruments provides a recommended layout and routing guide in their application note SLVAE03, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The output capacitor value depends on the desired output voltage ripple, output current, and stability requirements. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage. TI's WEBENCH tool can also be used to simulate and optimize the output capacitor value.
Although the datasheet specifies a maximum input voltage of 5.5V, the device can handle input voltages up to 6V for short durations (e.g., during power-up or voltage transients). However, continuous operation above 5.5V is not recommended and may affect the device's reliability and performance.
The TLV5624CDGK is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, when designing for high-temperature applications. TI's thermal calculation tool can help estimate the device's junction temperature.
To ensure output voltage accuracy and stability, it's crucial to follow proper PCB layout and routing guidelines, use a stable input voltage, and select the correct output capacitor value. Additionally, the device's output voltage can be trimmed using the VREF pin, and the output voltage accuracy can be improved by using an external voltage reference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5624CDGK Overview

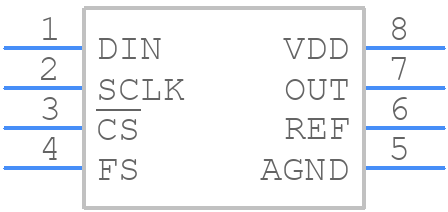

Use the download button to access the TLV5624CDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
