TLV5624IDGKG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 8-Bit 1.0-3.5us DAC Serial Out

Download TLV5624IDGKG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

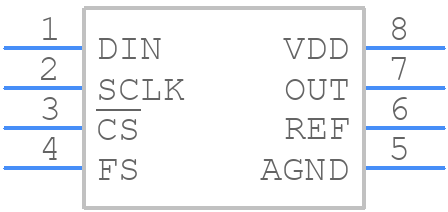

TLV5624IDGKG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5624IDGKG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)-1
click to zoom
3D Models
TLV5624IDGKG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)-1
click to zoom

TLV5624IDGKG4 Details

  • Manufacturer Part Number:

    TLV5624IDGKG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, PLASTIC, MSOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.233 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    3.5 µs

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV5624IDGKG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from digital signals.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin, and a smaller capacitor (e.g., 100nF) near the AVCC pin. Ensure the power supply is stable and within the recommended voltage range (2.7V to 5.5V).
  • The TLV5624IDGKG4 can operate up to 50 MHz, but the maximum clock frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance.
  • The TLV5624IDGKG4 can be configured for differential or single-ended output by setting the appropriate bits in the control register. For differential output, set the OEB pin high and the OEC pin low. For single-ended output, set the OEB pin low and the OEC pin high.
  • Use a common clock source and ensure that the clock signal is properly distributed to each device. You can also use the SYNC pin to synchronize the devices, but this method requires careful attention to clock skew and jitter.
