TLV5629IPWR - Texas Instruments

Description: Digital to Analog Converters - DAC 8bit 8Ch 1/3us DAC

Download TLV5629IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

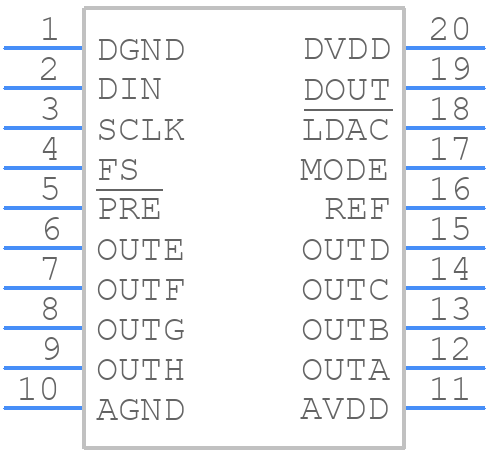

TLV5629IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5629IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TLV5629IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TLV5629IPWR Details

  • Manufacturer Part Number:

    TLV5629IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.283 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    21 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV5629IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the power supply and analog signal sources. Keep the analog and digital grounds separate and use a solid ground plane to minimize noise. Place decoupling capacitors close to the device's power pins.
  • To ensure accurate voltage regulation, use a high-precision voltage reference, such as the TLV5629's internal reference, and minimize noise on the input voltage. Also, use a low-ESR output capacitor and ensure the output voltage is within the specified range.
  • The TLV5629IPWR can deliver up to 150mA of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's electrical characteristics table for more information.
  • Use external overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits to protect the device from voltage transients and faults. The TLV5629IPWR has a built-in UVLO feature, but it's recommended to add external protection for added reliability.
  • Use a high-quality, low-ESR ceramic capacitor with a value between 1uF to 10uF for the input capacitor. The capacitor should be placed close to the device's input pin to minimize noise and ensure stable operation.
