Texas Instruments recommends a star-ground connection, with the analog and digital grounds separated and connected at a single point. Additionally, keep the analog and digital signal traces separate and avoid running them parallel to each other. Use a solid ground plane and decouple the power supply pins with 0.1uF capacitors.
The internal reference voltage of the TLV5632IDW is 2.5V. You can use this internal reference or an external reference voltage. If using an external reference, ensure it is stable and accurate, and connect it to the REF pin. You can also bypass the internal reference with a capacitor to reduce noise.
The maximum sampling rate of the TLV5632IDW is 1 MSPS. As the sampling rate increases, the power consumption also increases. However, the power consumption is relatively low, with a typical current consumption of 1.5mA at 1 MSPS.
The TLV5632IDW has a serial interface that can be connected to a microcontroller or FPGA. Use a 3-wire SPI interface (SCLK, SDI, and SDO) to communicate with the device. Ensure the interface signals are properly terminated and use a logic level translator if necessary.
The TLV5632IDW has a high accuracy and linearity, with a typical differential nonlinearity of ±0.5 LSB and integral nonlinearity of ±1 LSB. This ensures that the device provides accurate conversions, which is critical in many applications such as industrial control, medical devices, and automotive systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5632IDW Overview

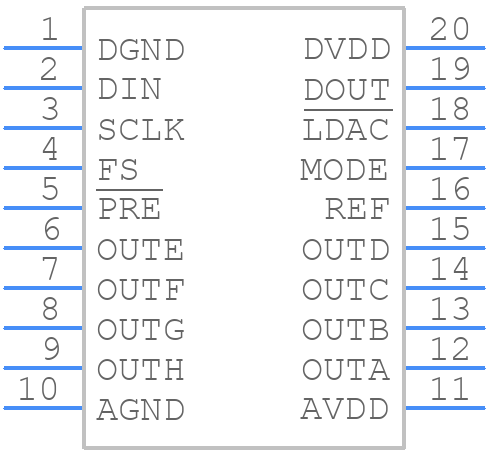

Use the download button to access the TLV5632IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
