A good PCB layout for the TLV6742IDSGR involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and avoid capacitive loads. Additionally, the device's output should be isolated from the input using a resistor or an inductor to prevent oscillations.
The maximum power dissipation of the TLV6742IDSGR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the operating temperature and thermal resistance.
The TLV6742IDSGR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and cooling in high-temperature applications.
To protect the TLV6742IDSGR from overvoltage and overcurrent, it's recommended to use voltage regulators with built-in overvoltage protection and current limiting. Additionally, using a fuse or a polyfuse can help prevent damage from overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV6742IDSGR Overview

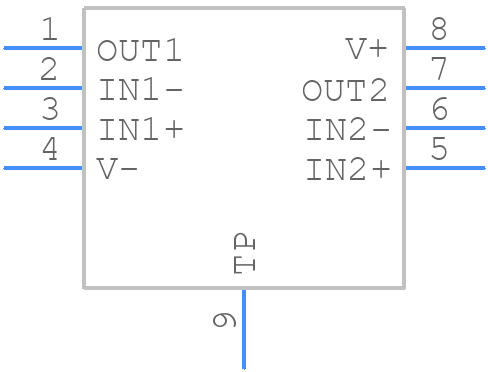

Use the download button to access the TLV6742IDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV67,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
