Texas Instruments provides a recommended PCB layout in the TLV6742SIRUGR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure stability, follow the recommended compensation network and component values provided in the datasheet. Additionally, ensure that the output capacitor is properly sized and placed close to the output pin, and that the input and output traces are properly routed to minimize parasitic inductance and capacitance.
The maximum safe operating area (SOA) for the TLV6742SIRUGR is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. As a general guideline, the device should be operated within the recommended operating conditions, and the junction temperature should be kept below 150°C to ensure reliable operation.
The TLV6742SIRUGR is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. If operation above 125°C is required, consider using a different device or implementing additional thermal management measures, such as heat sinks or cooling systems.
To troubleshoot common issues, start by verifying the input voltage, output load, and compensation network. Check for proper PCB layout, component values, and routing. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV6742SIRUGR Overview

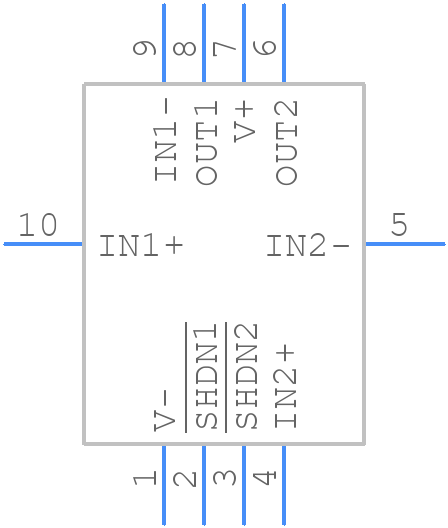

Use the download button to access the TLV6742SIRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV67,
or try a keyword search, such as Operational Amplifiers
