TLV7032DSGR - Texas Instruments

Description: Analog Comparators Dual nanopower, small size comparator with push-pull output

Download TLV7032DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

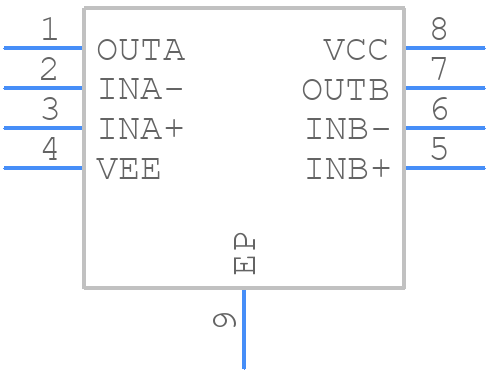

TLV7032DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV7032DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TLV7032DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TLV7032DSGR Details

  • Manufacturer Part Number:

    TLV7032DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.000002 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.0015 mA

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TLV7032DSGR Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and keep the output capacitor value within the recommended range (1uF to 22uF). Also, avoid using a capacitor with a high equivalent series resistance (ESR) on the output.
  • The TLV7032DSGR can handle an input voltage up to 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent overheating.
  • The TLV7032DSGR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • The output voltage of the TLV7032DSGR is adjustable using an external resistor divider network. The output voltage can be calculated using the formula: Vout = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV7032DSGR Overview

Use the download button to access the TLV7032DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV70, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
