- Part Number TLV7032QDGKRQ1
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGK
- Released Date Mar 28, 2022
- Last Modified Date Mar 6, 2025 10:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLV7032QDGKRQ1 Details
-
Manufacturer Part Number:
TLV7032QDGKRQ1
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Amplifier Type:
COMPARATOR
TLV7032QDGKRQ1 Frequently Asked Questions (FAQs)
-
The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage stability.
-
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and keep the output capacitor value within the recommended range. Additionally, avoid using long traces and minimize the distance between the input and output capacitors.
-
The TLV7032QDGKRQ1 can deliver up to 300mA of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
-
The TLV7032QDGKRQ1 is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation in high-temperature environments.
-
The output voltage of the TLV7032QDGKRQ1 can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.2V), R1 is the feedback resistor, and R2 is the divider resistor. The output voltage range is from 1.2V to 5.5V.
Trust Checks
Community Provided
System Verified
Community Approved
TLV7032QDGKRQ1 Overview

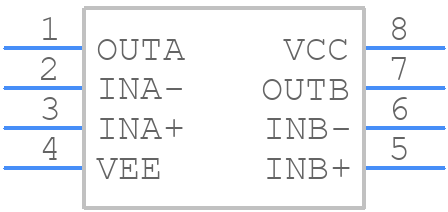

Use the download button to access the TLV7032QDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV70,
or try a keyword search, such as Comparators
