TLV7034RTER - Texas Instruments

Description: Analog Comparators Quad nanopower, small size comparator with push-pull output 16-WQFN -40 to 125

Download TLV7034RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

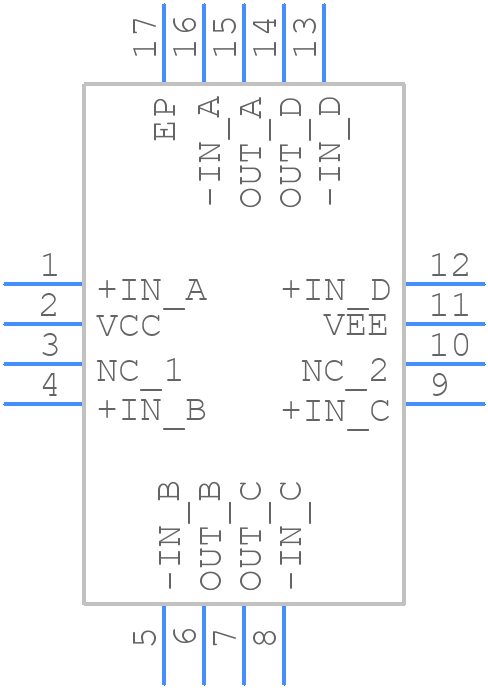

TLV7034RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV7034RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TLV7034RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TLV7034RTER Details

  • Manufacturer Part Number:

    TLV7034RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-11-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.000002 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    3000 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV7034RTER Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and ensure that the output capacitor is within the recommended range (1uF to 22uF). Additionally, avoid using long traces and minimize the distance between the input and output capacitors.
  • The maximum input voltage rating for the TLV7034RTER is 18V. However, it's recommended to operate the device within the recommended input voltage range (2.7V to 16V) to ensure reliable operation and to prevent damage to the device.
  • The TLV7034RTER is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage according to the temperature derating curve provided in the datasheet.
  • The output voltage of the TLV7034RTER is adjustable using an external resistor divider network. The output voltage can be calculated using the formula: Vout = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV7034RTER Overview

Use the download button to access the TLV7034RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV70, or try a keyword search, such as Comparators
