The TLV9002IDSGR is a high-gain, high-frequency amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the signal source, using short traces, and avoiding parallel traces to minimize noise coupling. Additionally, a solid ground plane and decoupling capacitors are essential for optimal performance.
The gain resistor (Rg) value depends on the desired gain and bandwidth of the amplifier. A smaller Rg value results in higher gain but reduces bandwidth, while a larger Rg value results in lower gain but increases bandwidth. TI provides a gain resistor calculator tool to help determine the optimal Rg value for a specific application.
The TLV9002IDSGR has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can cause damage to the device. However, the recommended maximum input voltage is 5.5V to ensure optimal performance and reliability.
To ensure stability and prevent oscillations, it's essential to follow proper layout and placement guidelines, use a solid ground plane, and decouple the power supply with capacitors. Additionally, TI recommends adding a small capacitor (e.g., 10pF) in parallel with the gain resistor to improve stability.
The typical current consumption of the TLV9002IDSGR is 1.4mA per amplifier, but this can vary depending on the specific application and operating conditions. It's essential to consider power consumption when designing the power supply and thermal management for the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV9002IDSGR Overview

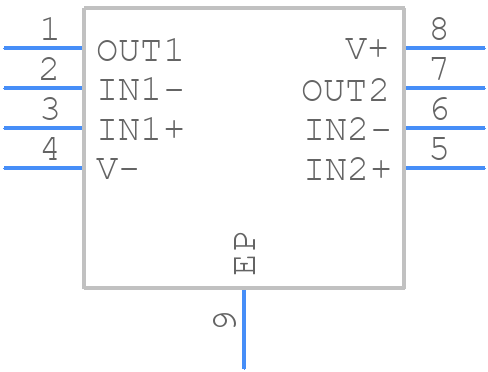

Use the download button to access the TLV9002IDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
