The TLV9004IRTER is a high-frequency device, so it's essential to follow good PCB layout practices to minimize noise and ensure proper operation. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Place the device close to the power supply and use a decoupling capacitor (e.g., 10nF) between the VIN pin and GND.
The output capacitor (COUT) should be chosen based on the desired output voltage ripple and transient response. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating of at least 2x the output voltage. For example, for a 3.3V output, use a 4.7uF or 10uF capacitor with a 6.3V or higher voltage rating.
The TLV9004IRTER has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage remains within the recommended operating range of 2.7V to 5.5V.
The TLV9004IRTER is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider the device's thermal characteristics when designing for high-temperature applications.
To ensure stability, follow the recommended layout and placement guidelines, and use a sufficient output capacitor (COUT) to filter out high-frequency noise. Additionally, ensure that the input voltage is within the recommended range, and the device is properly decoupled from the power supply. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the VIN pin and GND.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV9004IRTER Overview

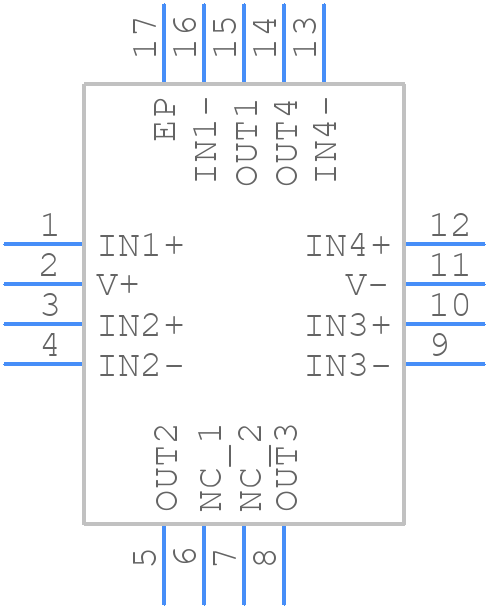

Use the download button to access the TLV9004IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV90,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
