TLV9102SIDGSR - Texas Instruments

Description: Operational Amplifiers - Op Amps Dual 1MHz, 16-V rail-to-rail input/output, low-offset voltage, low-power op amp

Download TLV9102SIDGSR Model

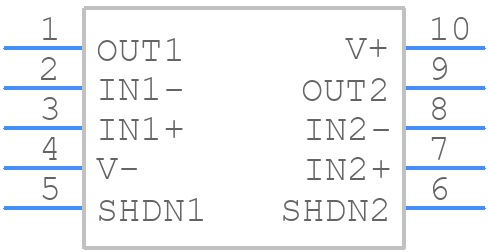

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV9102SIDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
TLV9102SIDGSR - Texas Instruments  - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

TLV9102SIDGSR Details

  • Manufacturer Part Number:

    TLV9102SIDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -10 V

  • Neg Supply Voltage-Nom (Vsup):

    -4 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.2

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    4.5 V/us

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    10 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1100

  • Voltage Gain-Min:

    158489

  • Wideband:

    NO

  • Width:

    3 mm

TLV9102SIDGSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the TLV9102SIDGSR placed close to the power source, and the input and output capacitors placed as close as possible to the device. A 4-layer PCB with a solid ground plane is recommended to minimize noise and EMI.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins can help to reduce noise and prevent oscillations.
  • The TLV9102SIDGSR has an absolute maximum input voltage rating of 18V. However, the recommended input voltage range is 2.7V to 15V. Operating the device above the recommended input voltage range can reduce its reliability and lifespan.
  • The TLV9102SIDGSR has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended thermal design and layout guidelines to ensure reliable operation in high-temperature environments.
  • The output voltage of the TLV9102SIDGSR can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage range is 0.8V to 15V.
