Part Image

TM4C123GH6ZRBIR - Texas Instruments

Description: MCU 32-bit Tiva C ARM Cortex M4F RISC 256KB Flash 1.2V/3.3V 157-Pin BGA T/R

Download TM4C123GH6ZRBIR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TM4C123GH6ZRBIR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

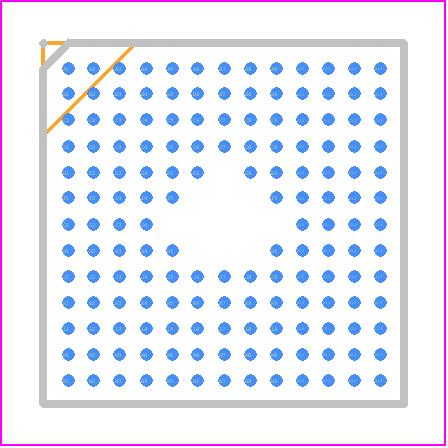

TM4C123GH6ZRBIR - Texas Instruments PCB footprint - BGA - BGA - ZRB0157A
click to zoom
3D Models
TM4C123GH6ZRBIR - Texas Instruments - 3D model - BGA - ZRB0157A
click to zoom

TM4C123GH6ZRBIR Details

  • Manufacturer Part Number:

    TM4C123GH6ZRBIR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B157

  • JESD-609 Code:

    e1

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    157

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA157,13X13,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

TM4C123GH6ZRBIR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the TM4C123GH6ZRBIR is 80 MHz, but it can be overclocked to 120 MHz with some limitations.
  • The pin muxing on the TM4C123GH6ZRBIR can be configured using the Pin Mux Utility tool provided by Texas Instruments, or by writing code to configure the GPIO registers directly.
  • The main difference between the TM4C123GH6ZRBIR and the TM4C1294NCPDT is the amount of flash memory and SRAM. The TM4C123GH6ZRBIR has 256 KB of flash and 32 KB of SRAM, while the TM4C1294NCPDT has 1 MB of flash and 256 KB of SRAM.
  • Yes, the TM4C123GH6ZRBIR can be used with operating systems like Linux or FreeRTOS. However, it requires a significant amount of work to port the OS to the microcontroller and configure the necessary drivers and peripherals.
  • The TM4C123GH6ZRBIR can be debugged and programmed using the IAR Embedded Workbench, Keil µVision, or the Texas Instruments Code Composer Studio (CCS) development environment, along with a debug probe like the XDS110 or the ICDI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TM4C123GH6ZRBIR Overview

Use the download button to access the TM4C123GH6ZRBIR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TM4C1, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
