Part Image

TMAG5170A2EDGKRQ1 - Texas Instruments

Description: Board Mount Hall Effect/Magnetic Sensors

Download TMAG5170A2EDGKRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

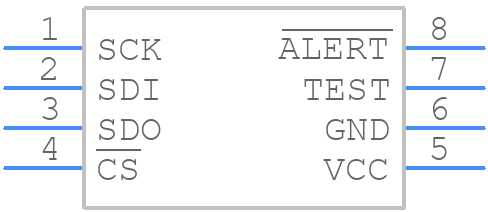

TMAG5170A2EDGKRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMAG5170A2EDGKRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMAG5170A2EDGKRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMAG5170A2EDGKRQ1 Details

  • Manufacturer Part Number:

    TMAG5170A2EDGKRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 mA

  • Output Interface Type:

    SPI

  • Output Range:

    -2-2mA

  • Output Type:

    DIGITAL CURRENT

  • Package Equivalence Code:

    SOP8,.2,25

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TMAG5170A2EDGKRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU575, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate magnetic sensing.
  • Calibration involves adjusting the device's internal registers to compensate for variations in the magnetic field and sensor characteristics. TI provides a calibration guide in the application note SLAU576, which includes step-by-step procedures and example code.
  • The TMAG5170A2EDGKRQ1 is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
  • While the TMAG5170A2EDGKRQ1 is optimized for use with TI's recommended magnet and sensor configurations, it can be used with other configurations. However, this may require custom calibration and testing to ensure accurate performance. Consult TI's application notes and technical support for guidance.
  • TI provides a troubleshooting guide in the application note SLAU577, which covers common issues and their solutions, including noise reduction techniques, signal processing, and debugging tools.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMAG5170A2EDGKRQ1 Overview

Use the download button to access the TMAG5170A2EDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMAG5, or try a keyword search, such as Magnetic Field Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
