- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TMAG5170A2QDGKR
- Part Number TMAG5170A2QDGKR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGK (S-PDSO-G8)
- Released Date Nov 21, 2021
- Last Modified Date Jan 6, 2024 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
TMAG5170A2QDGKR Details
-
Manufacturer Part Number:
TMAG5170A2QDGKR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Body Breadth:
3 mm
-
Body Height:
1.1 mm
TMAG5170A2QDGKR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLAU575, which includes guidelines for component placement, routing, and shielding to minimize noise and ensure accurate magnetic sensing.
-
Calibration involves adjusting the device's internal registers to compensate for variations in the magnetic field and sensor characteristics. TI provides a calibration guide in the application note SLAU576, which includes step-by-step procedures and software tools to help with the calibration process.
-
The TMAG5170A2QDGKR is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific guidance on temperature-related considerations.
-
While the TMAG5170A2QDGKR is optimized for use with TI's recommended magnet and sensor configurations, it's possible to use it with other configurations. However, this may require custom calibration and testing to ensure accurate performance. TI's application notes and support resources can provide guidance on adapting the device to alternative configurations.
-
TI provides a troubleshooting guide in the application note SLAU577, which covers common issues and their solutions, including noise reduction techniques, signal processing, and debugging tools. Additionally, TI's support forums and technical support teams can provide further assistance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TMAG5170A2QDGKR Overview

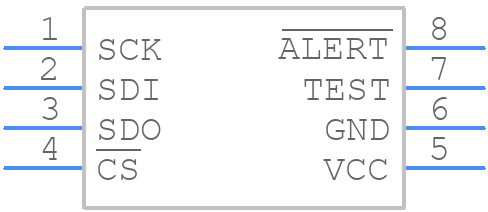

Use the download button to access the TMAG5170A2QDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMAG5,
or try a keyword search, such as Magnetic Field Sensors
