Texas Instruments provides a recommended PCB layout in the application note SLUAUH0A, which includes guidelines for component placement, routing, and shielding to minimize noise and ensure accurate magnetic sensing.
Calibration involves adjusting the device's internal registers to compensate for variations in the magnetic field and sensor characteristics. TI provides a calibration guide in the application note SLUAUH0B, which includes step-by-step procedures and software tools to help with the calibration process.
The TMAG5170DA1EPWRQ1 is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific guidance on temperature-related considerations.
While the TMAG5170DA1EPWRQ1 is designed to operate at 3.3V, it can tolerate a supply voltage range of 2.7V to 3.6V. However, operating the device outside the recommended voltage range may affect its performance, accuracy, and reliability. Consult the datasheet and application notes for specific guidance on power supply considerations.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, consult the application note SLUAUH0C for specific guidance on EMC considerations for the TMAG5170DA1EPWRQ1.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMAG5170DA1EPWRQ1 Overview

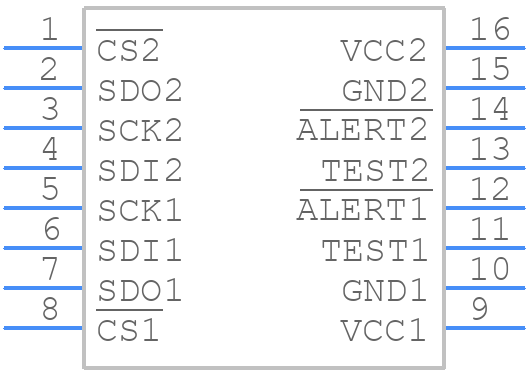

Use the download button to access the TMAG5170DA1EPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMAG5,
or try a keyword search, such as Magnetic Field Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
