TMC2100-TA-T footprint, schematic symbol and 3D model by Analog Devices

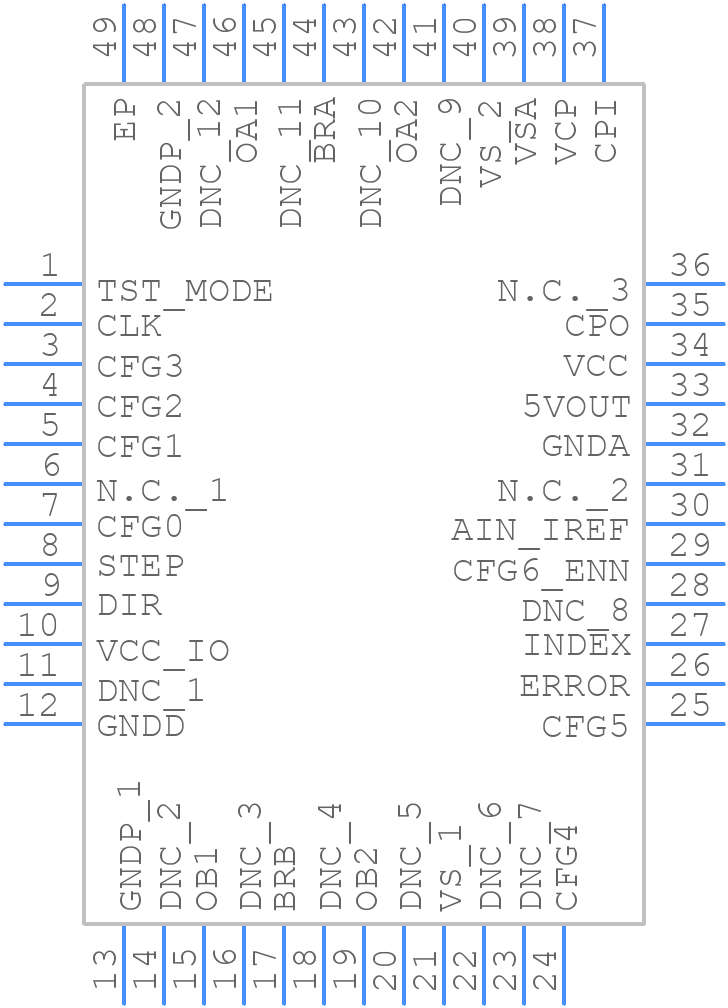

Symbol

click to zoom

PCB Footprints

TMC2100-TA-T - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48-EP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMC2100-TA-T
Part Number TMC2100-TA-T
Manufacturer Analog Devices
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - TQFP48-EP
Released Date Oct 12, 2023
Last Modified Date Aug 5, 2026 10:19 AM UTC
Pinout / Pin List Click Here (Member Only)

TMC2100-TA-T Details

Manufacturer Part Number:
TMC2100-TA-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TQFP-48
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
JESD-30 Code:
S-PQFP-G48
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTFQFP
Package Equivalence Code:
TQFP48,.35SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
22 mA
Supply Voltage-Max (Vsup):
46 V
Supply Voltage-Min (Vsup):
4.7 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm

TMC2100-TA-T Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode choke and ferrite beads to filter the power supply lines.
Use a low-noise power supply, decouple the power pins with 10uF and 100nF capacitors, and use a low-pass filter on the analog input pins. Also, ensure the PCB layout is optimized for low noise and the device is operated within its recommended operating conditions.
The maximum cable length depends on the specific application and the noise environment. As a general guideline, keep the cable length as short as possible (less than 10 inches) and use shielded cables to minimize noise pickup.
No, the TMC2100-TA-T is designed to operate from a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance.
Check the power supply voltage, analog input voltage, and output load impedance. Verify that the device is properly configured and the output is not overloaded. Use an oscilloscope to check the output waveform and noise levels.
