TMC2225-SA - Analog Devices

Description: Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

Download TMC2225-SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

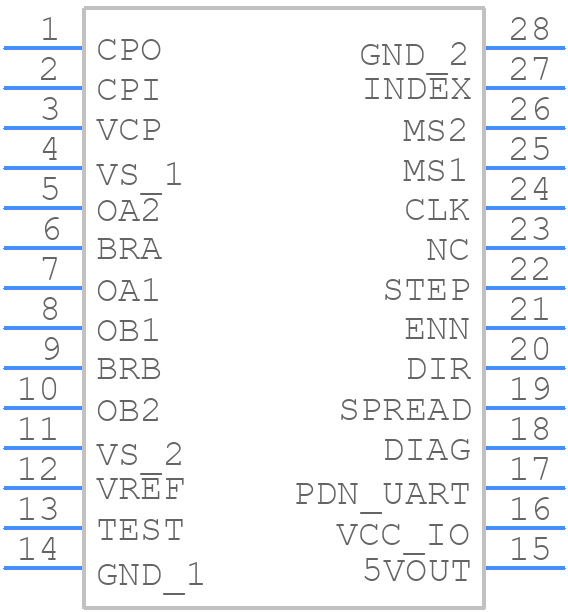

TMC2225-SA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC2225-SA - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP28_2024
click to zoom
3D Models
TMC2225-SA - Analog Devices - 3D model - Small Outline Packages - HTSSOP28_2024
click to zoom

TMC2225-SA Details

  • Manufacturer Part Number:

    TMC2225-SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC2225-SA Overview

Use the download button to access the TMC2225-SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC22, or try a keyword search, such as Motion Control Electronics

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
