TMC2240ATJ+T footprint, schematic symbol and 3D model by Analog Devices

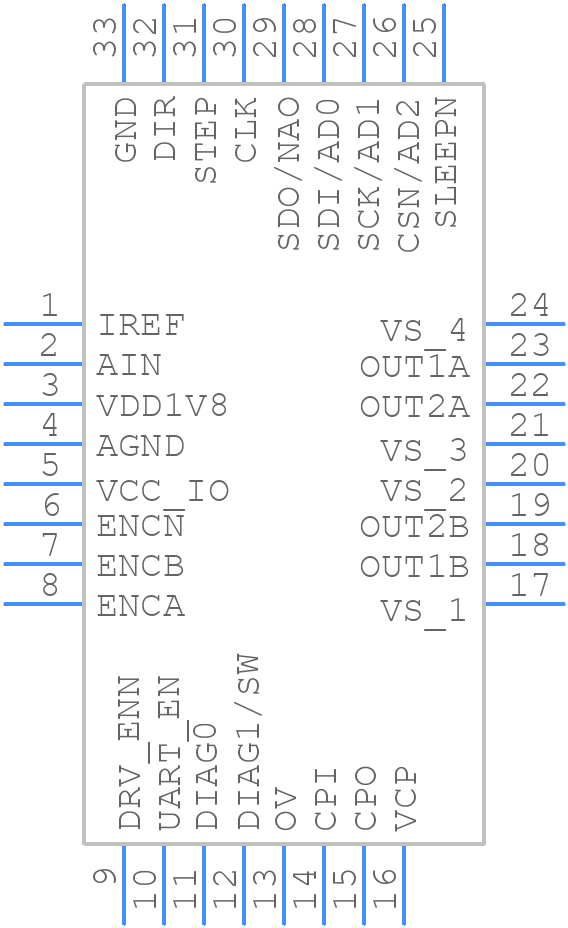

Symbol

click to zoom

PCB Footprints

TMC2240ATJ+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TMC2240ATJ+T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMC2240ATJ+T
Part Number TMC2240ATJ+T
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - TMC2240ATJ+T
Released Date Oct 12, 2023
Last Modified Date Jul 7, 2026 10:50 AM UTC
Pinout / Pin List Click Here (Member Only)

TMC2240ATJ+T Details

Manufacturer Part Number:
TMC2240ATJ+T
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
JESD-30 Code:
S-PQCC-N32
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HWQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

TMC2240ATJ+T Frequently Asked Questions (FAQs)

The recommended PCB layout for the TMC2240ATJ+T can be found in the TMC2240 Evaluation Board User Guide (UG-144) provided by Analog Devices. It includes guidelines for component placement, routing, and thermal management.
The TMC2240ATJ+T requires configuration for the specific motor being used. This can be done using the SPI interface to set the motor parameters, such as the number of pole pairs, maximum current, and acceleration. The configuration process is described in the TMC2240 datasheet and application notes.
The maximum operating temperature of the TMC2240ATJ+T is 125°C (junction temperature). However, the device can be operated at a lower temperature range (e.g., 85°C) for improved reliability and performance.
Troubleshooting issues with the TMC2240ATJ+T can be done using the device's built-in diagnostic features, such as the fault flags and status registers. Additionally, Analog Devices provides a range of tools and resources, including the TMC2240 Evaluation Board and software development kits, to help debug and optimize the device's performance.
Yes, the TMC2240ATJ+T is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the device's operating temperature range and power supply requirements should be considered in high-vibration environments.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TMC2240ATJ+T Overview

Use the download button to access the TMC2240ATJ+T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TMC22, or try a keyword search, such as Motion Control Electronics

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
