TMC239A-SA-T - Analog Devices

Description: FEATURES AND BENEFITS High Current up to 7A RMS using 4 Dual-MOS transistors. Voltage Range 7 V… 36 V DC 3.3 V or 5 V DC for digital part SPI & External Analogue / Digital Signals Microstep Resolution up to 64 microsteps per full step Low Power Dissipation via low RDS-ON power stage Protection: overvoltage, overtemperature & short circuit Diagnostics: overcurrent, open load, 2 level overtemperature Mixed Decay for smooth motor operation Slope Control for reduced electromagnetic emissions Current

Download TMC239A-SA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

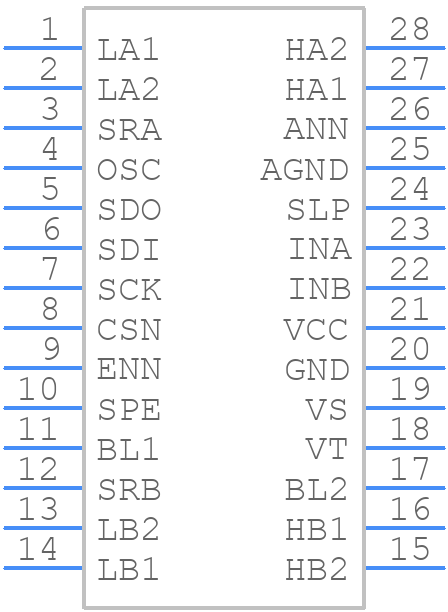

TMC239A-SA-T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC239A-SA-T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO28
click to zoom
3D Models
TMC239A-SA-T - Analog Devices - 3D model - Small Outline Packages - SO28
click to zoom

TMC239A-SA-T Details

  • Manufacturer Part Number:

    TMC239A-SA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC239A-SA-T Overview

Use the download button to access the TMC239A-SA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC23, or try a keyword search, such as Motion Control Electronics
