TMC261C-PA - Analog Devices

Description: Stepper motor driver 5 to 60V, up to 1.4A with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

Download TMC261C-PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

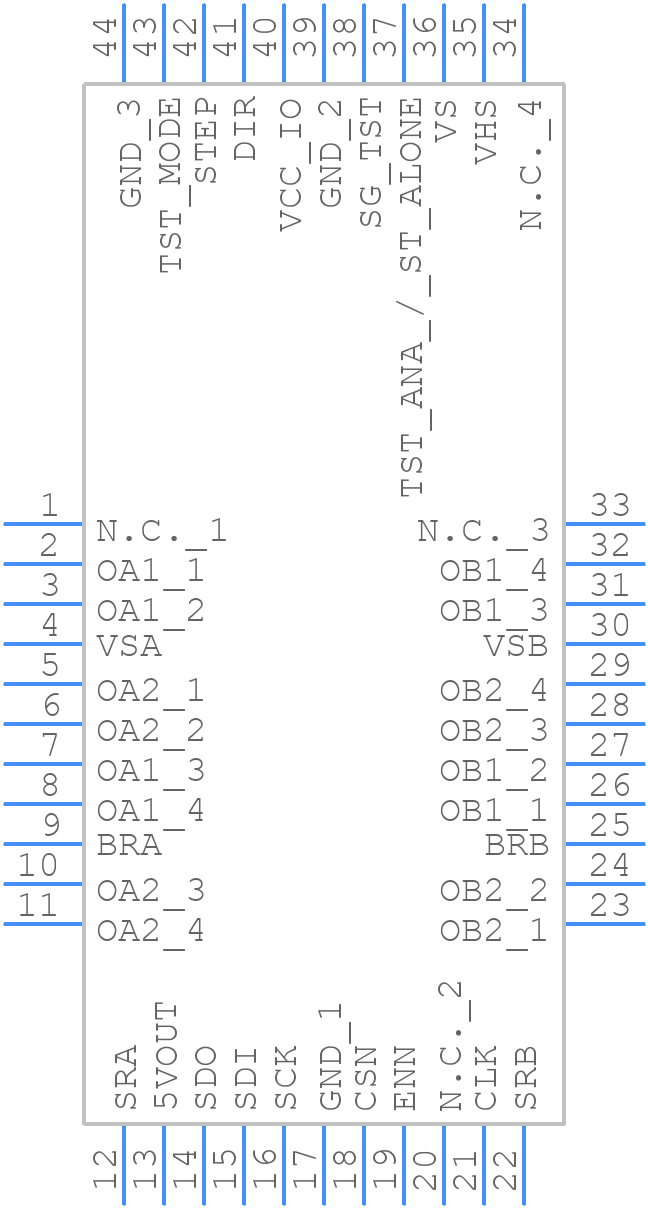

TMC261C-PA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC261C-PA - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (PQFP44)
click to zoom
3D Models
TMC261C-PA - Analog Devices - 3D model - Quad Flat Packages - (PQFP44)
click to zoom

TMC261C-PA Details

  • Manufacturer Part Number:

    TMC261C-PA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-44

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    59 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TMC261C-PA Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMC261C-PA involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the motor driver IC. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and EMI.
  • To configure the SPI interface of the TMC261C-PA, ensure that the clock frequency is within the recommended range (typically 100 kHz to 1 MHz), and use a valid chip select signal. Also, make sure to set the correct SPI mode (CPOL and CPHA) and use a valid data format (MSB or LSB first).
  • The maximum current rating of the TMC261C-PA is typically 1.5 A per phase. To ensure safe operation, ensure that the motor current is within the recommended range, use a suitable heat sink, and provide adequate cooling. Also, monitor the device temperature and current consumption to prevent overheating and overcurrent conditions.
  • To troubleshoot common issues with the TMC261C-PA, start by checking the motor connections and wiring. Verify that the motor is properly connected and that the correct motor configuration is selected. Also, check the SPI communication and ensure that the correct commands are being sent. Use a logic analyzer or oscilloscope to debug the SPI signals and motor control signals.
  • The TMC261C-PA is designed for use with DC motors, but it can be used with other motor types or configurations with some modifications. However, this may require additional circuitry or firmware modifications. Consult the datasheet and application notes for specific guidance, and consider consulting with an Analog Devices Inc. application engineer for custom solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC261C-PA Overview

Use the download button to access the TMC261C-PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC26, or try a keyword search, such as Motion Control Electronics

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
