TMC5240ATJ+T - Analog Devices

Description: 36V 2ARMS+ Smart Integrated Stepper Driver and Controller

Download TMC5240ATJ+T Model
Schematic

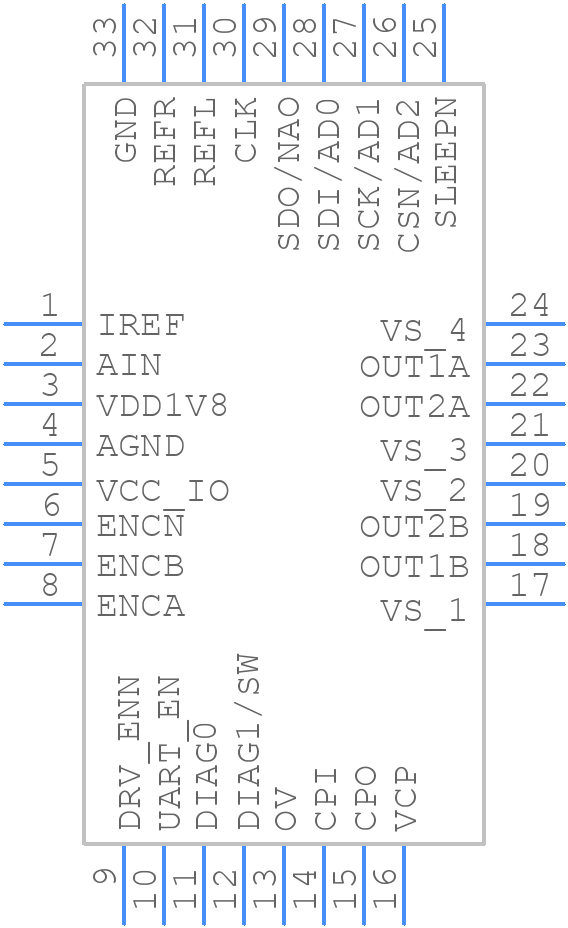

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMC5240ATJ+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+5C
click to zoom
3D Models
TMC5240ATJ+T - Analog Devices  - 3D model - Quad Flat No-Lead - T3255+5C
click to zoom

TMC5240ATJ+T Details

  • Manufacturer Part Number:

    TMC5240ATJ+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

TMC5240ATJ+T Frequently Asked Questions (FAQs)

  • A good thermal design is crucial for the TMC5240ATJ+T. It's recommended to have a solid copper pour on the top and bottom layers of the PCB, connected to the exposed pad of the IC. This helps to dissipate heat efficiently. Additionally, ensure that the PCB has adequate thermal vias to connect the top and bottom layers.
  • The TMC5240ATJ+T is a highly configurable device. To configure it for different motor types, you'll need to adjust the settings for the motor type, current sense resistors, and the driver configuration. You can use the TMC5240ATJ+T's SPI interface to configure the device using the provided registers. Refer to the datasheet and the application note AN-1152 for more information.
  • The TMC5240ATJ+T has a maximum current rating of 4A peak per phase. However, the actual current rating depends on the application's thermal requirements and the PCB's thermal design. It's essential to ensure that the device operates within its thermal limits to prevent overheating.
  • To troubleshoot common issues like motor stalling or overheating, start by checking the motor's electrical connections, the current sense resistors, and the driver configuration. Ensure that the device is properly configured for the motor type and that the thermal design is adequate. You can also use the device's diagnostic features, such as the overcurrent detection and thermal warning flags, to identify the root cause of the issue.
  • To ensure stable operation, it's recommended to decouple the power supply lines (VCC and VDD) with a combination of ceramic and electrolytic capacitors. A 10uF ceramic capacitor and a 100uF electrolytic capacitor in parallel are a good starting point. Additionally, ensure that the power supply lines are well-filtered and have a low impedance to prevent noise and voltage drops.
