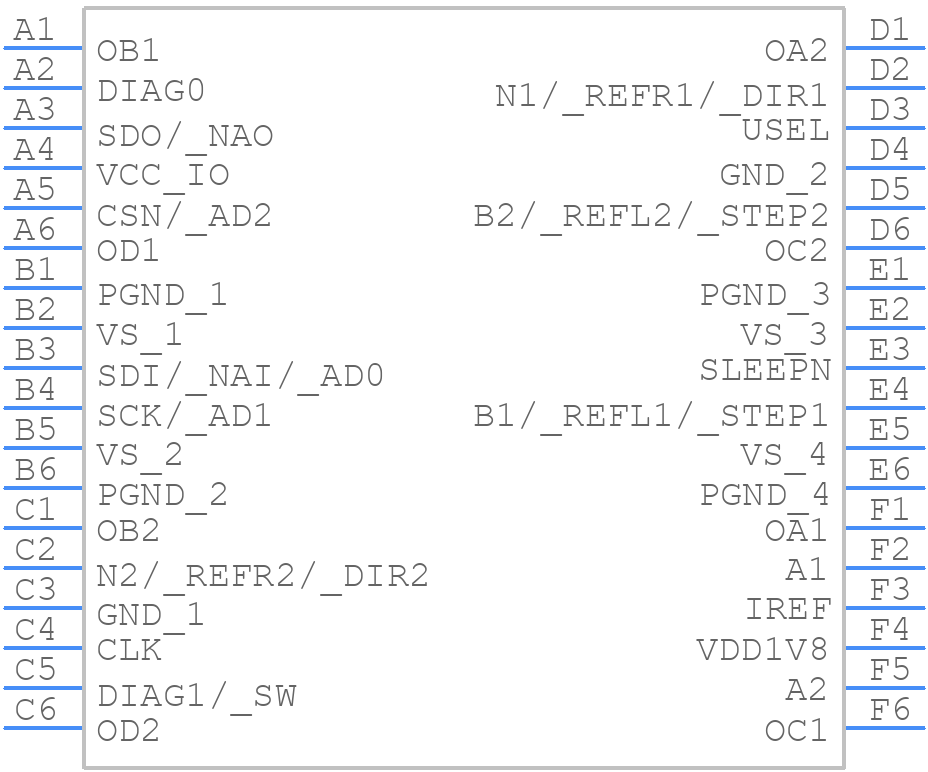

TMC5272AWX+T - Analog Devices

TMC5272AWX+T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for optimal thermal performance involves placing the TMC5272AWX+T near the edge of the board, using a large copper area for heat dissipation, and minimizing the number of layers under the device. Additionally, using thermal vias and a thermal pad can help to dissipate heat more efficiently.
• How do I configure the device for different motor types?
  The TMC5272AWX+T can be configured for different motor types by adjusting the motor parameters such as the number of pole pairs, maximum current, and acceleration rates. This can be done through the SPI interface using the provided software libraries and documentation.
• What is the maximum operating temperature range for the device?
  The TMC5272AWX+T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper heat dissipation to maintain a safe operating temperature.
• How do I troubleshoot common issues such as motor stalling or incorrect direction?
  To troubleshoot common issues, check the motor connections, ensure proper configuration and calibration, and verify the input signals. Use the device's built-in diagnostic features, such as the stall detection and error flags, to identify the root cause of the issue.
• What are the recommended decoupling capacitors for the device?
  The recommended decoupling capacitors for the TMC5272AWX+T are 100nF to 1uF ceramic capacitors, placed as close as possible to the device's power pins. This helps to filter out noise and ensure stable operation.
