TMC6200-TA - Analog Devices

Description: Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current, Inline current sense

Download TMC6200-TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

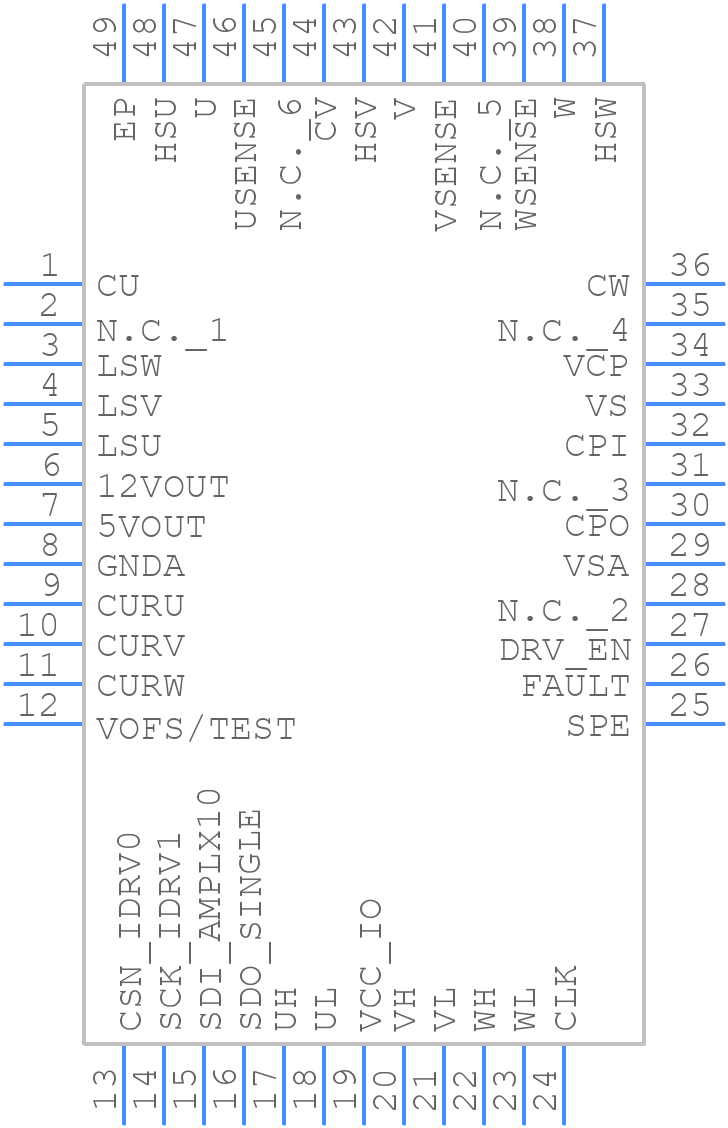

TMC6200-TA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC6200-TA - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48-EP
click to zoom
3D Models
TMC6200-TA - Analog Devices - 3D model - Quad Flat Packages - TQFP48-EP
click to zoom

TMC6200-TA Details

  • Manufacturer Part Number:

    TMC6200-TA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1.8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.11 µs

  • Turn-on Time:

    0.11 µs

  • Width:

    7 mm

TMC6200-TA Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMC6200-TA involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the motor driver stage. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and EMI.
  • The current sense resistors should be chosen based on the maximum current rating of the motor and the desired current sense accuracy. A lower value resistor will provide better accuracy but may increase power dissipation, while a higher value resistor will reduce power dissipation but may decrease accuracy. Typically, a value between 0.01 ohms and 0.1 ohms is recommended.
  • A decoupling capacitor configuration of 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed close to the device's power pins, is recommended to filter out high-frequency noise and ensure stable operation.
  • Check the motor connections, ensure that the correct motor configuration is selected, and verify that the input voltage and current limits are within the recommended specifications. Also, check the fault flags and error codes to identify any issues with the device or motor. Consult the datasheet and application notes for more detailed troubleshooting steps.
  • No, the TMC6200-TA is designed specifically for use with stepper motors and is not compatible with brushed DC motors. Using it with a brushed DC motor may result in incorrect operation or damage to the device.
