TMC6300-LA-T - Analog Devices

Description: Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Download TMC6300-LA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

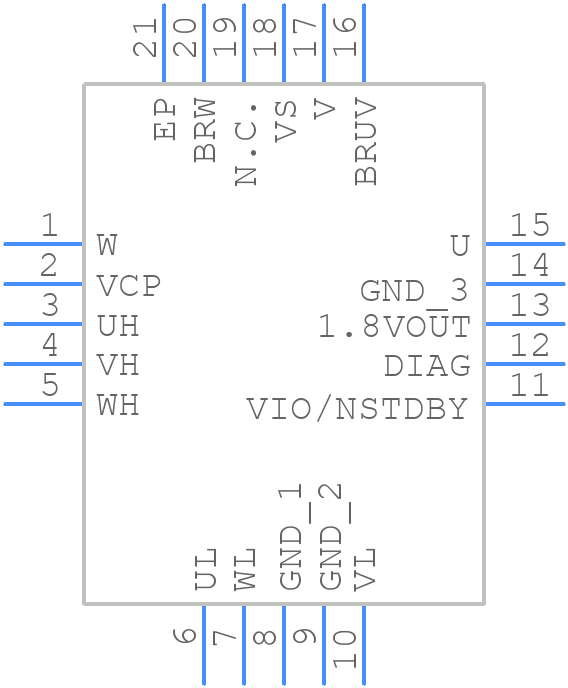

TMC6300-LA-T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC6300-LA-T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20_2023
click to zoom
3D Models
TMC6300-LA-T - Analog Devices - 3D model - Quad Flat No-Lead - QFN20_2023
click to zoom

TMC6300-LA-T Details

  • Manufacturer Part Number:

    TMC6300-LA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

TMC6300-LA-T Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the TMC6300-LA-T near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the device can help to dissipate heat efficiently.
  • The TMC6300-LA-T can be configured for different motor types and applications using the SPI interface. The device has several registers that can be programmed to set the motor type, current limits, acceleration and deceleration rates, and other parameters. The datasheet provides a detailed description of the registers and their functions.
  • The recommended values for the external components, such as resistors and capacitors, can be found in the datasheet and the application notes provided by Analog Devices Inc. The values may vary depending on the specific application and the motor type.
  • Troubleshooting common issues, such as motor stalling or overheating, involves checking the device's status registers, monitoring the motor current and voltage, and verifying the correctness of the configuration and programming. The datasheet and application notes provide guidance on troubleshooting and debugging techniques.
  • When working with the TMC6300-LA-T, it is essential to follow proper safety precautions, such as handling the device by the body and not the pins, avoiding static electricity, and using proper soldering and desoldering techniques. Additionally, the device should be operated within the recommended temperature range and voltage limits.
