TMC8100ATG+ - Analog Devices

Description: Interface - Specialized Universal Encoder Master Controller

Download TMC8100ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

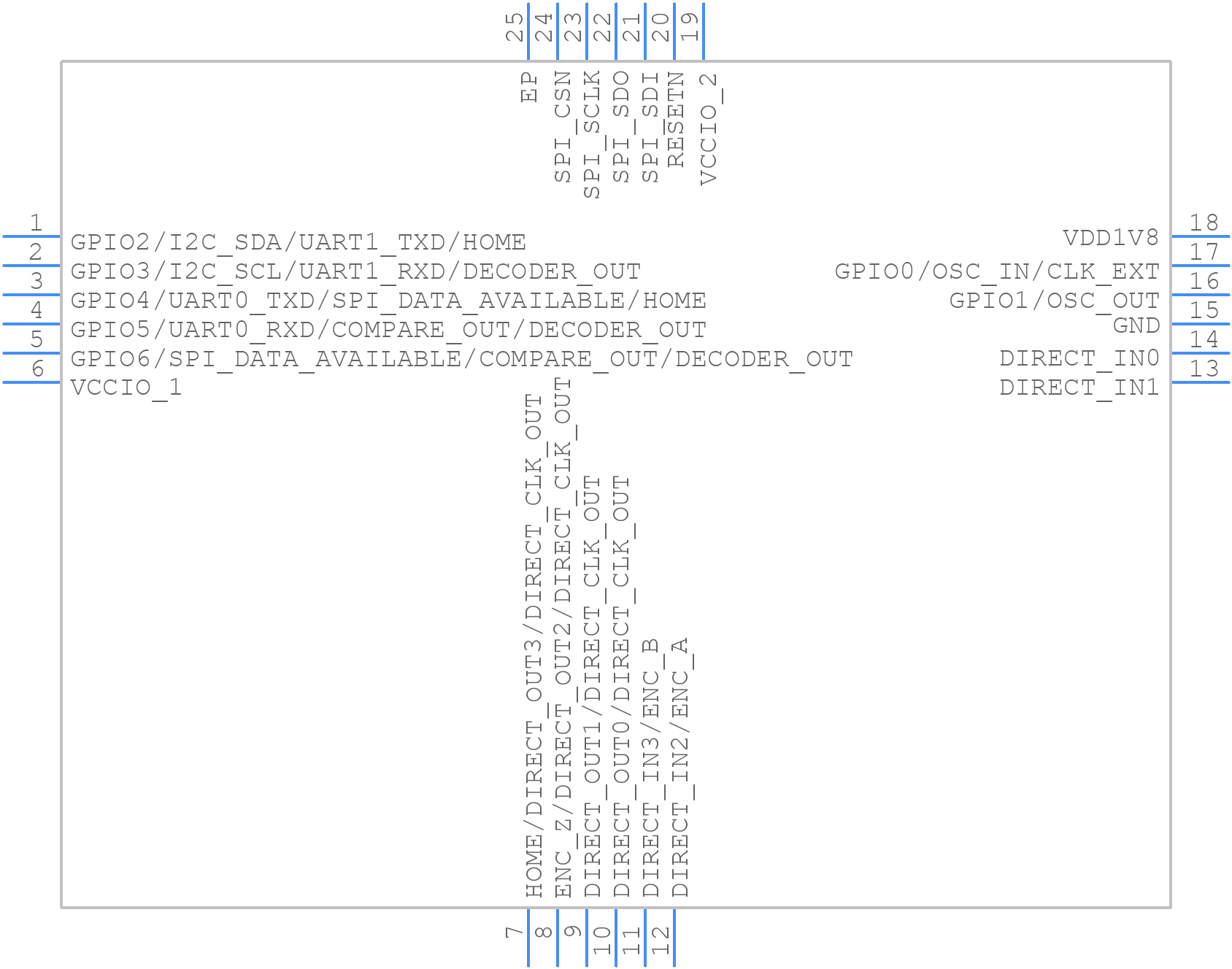

TMC8100ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC8100ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+3
click to zoom
3D Models
TMC8100ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+3
click to zoom

TMC8100ATG+ Details

  • Manufacturer Part Number:

    TMC8100ATG+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC8100ATG+ Overview

Use the download button to access the TMC8100ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC81, or try a keyword search, such as Serial IO/Communication Controllers
