TMCS1100A1QDR - Texas Instruments

Description: Board Mount Current Sensors Precision isolated current sensor with external reference 8-SOIC -40 to 125

Download TMCS1100A1QDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

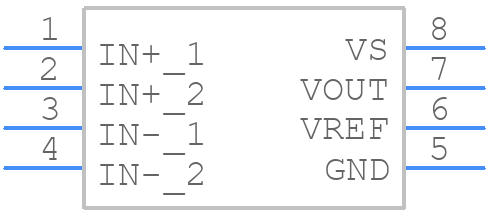

TMCS1100A1QDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMCS1100A1QDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D(R-PDSO-G)
click to zoom
3D Models
TMCS1100A1QDR - Texas Instruments - 3D model - Small Outline Packages - D(R-PDSO-G)
click to zoom

TMCS1100A1QDR Details

  • Manufacturer Part Number:

    TMCS1100A1QDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    3.895 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.905 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.23

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

TMCS1100A1QDR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device.
  • Use a low-impedance current sense resistor (e.g., 1mΩ) and place it close to the device. Ensure the sense resistor is in the same thermal zone as the device. Use a Kelvin connection to the sense resistor to minimize errors.
  • Use a 2nd-order low-pass filter (e.g., RC filter) with a cutoff frequency around 100kHz to filter out high-frequency noise. The filter should be placed close to the device's input pins.
  • The internal voltage regulator is enabled by default. If an external voltage regulator is used, ensure it can supply at least 10mA to the device. Bypass the internal regulator by connecting the VREG_EN pin to GND.
  • Use a thermal pad or a heat sink with a thermal interface material (e.g., thermal tape) to dissipate heat. Ensure good airflow around the device. Avoid using thermal vias under the device.
