Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and decoupling to minimize EMI and ensure signal integrity.
The TMDS1204RNQR is a flexible device that can be configured for different HDMI versions through register programming. The configuration depends on the specific HDMI version and the requirements of the application. Refer to the device's programming guide and the HDMI specification for more information.
The maximum cable length supported by the TMDS1204RNQR depends on the specific application and the quality of the cable. In general, the device can support cable lengths up to 30 meters at 10.2 Gbps. However, signal quality may degrade with longer cable lengths, and equalization may be required to compensate for signal attenuation.
Texas Instruments provides a troubleshooting guide for the TMDS1204RNQR, which includes steps for debugging common issues, such as signal integrity problems, device malfunction, and power-on reset failures. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device.
The TMDS1204RNQR has a maximum junction temperature of 125°C. To ensure reliable operation in high-temperature environments, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMDS1204RNQR Overview

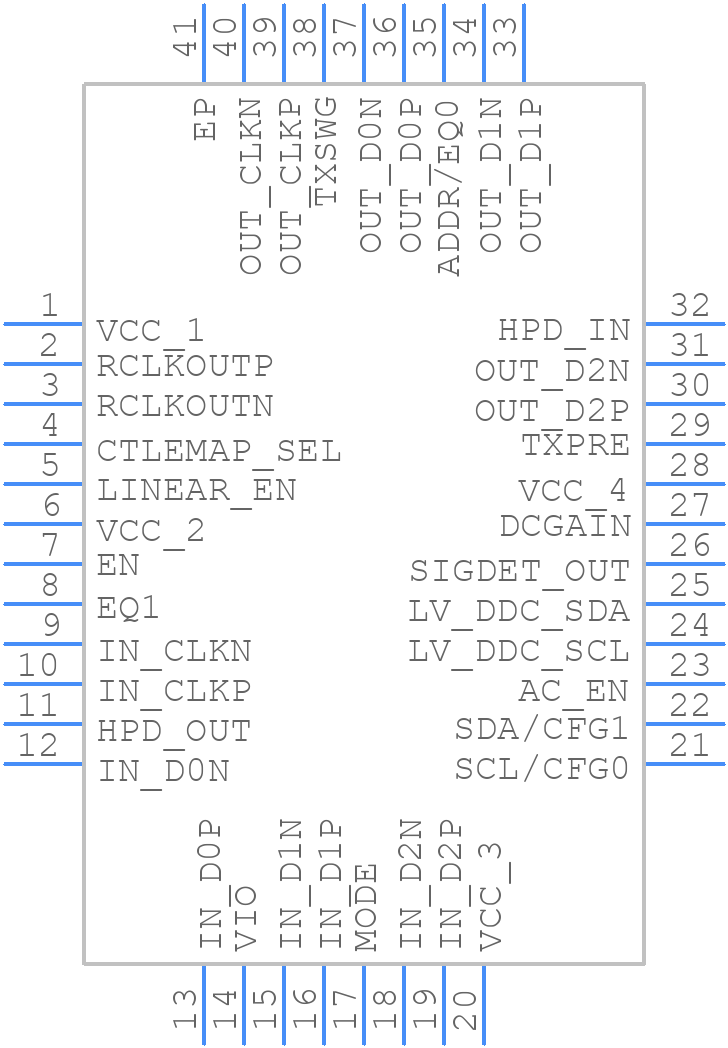

Use the download button to access the TMDS1204RNQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMDS1,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
