Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for signal integrity, decoupling, and thermal management. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Ensure that the differential pairs are routed close together and away from noise sources.
The TMDS1204RNQT has a thermal pad that must be connected to a thermal plane on the PCB. Ensure that the thermal plane is connected to a heat sink or a metal plate to dissipate heat efficiently. Apply thermal interface material (TIM) between the thermal pad and the heat sink to reduce thermal resistance.
The TMDS1204RNQT supports cable lengths up to 10 meters at 12 Gbps. However, the actual cable length may vary depending on the cable quality, signal integrity, and system requirements. It's recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
The TMDS1204RNQT is a multi-rate serializer, and the data rate can be configured through the control pins (SCL and SDA) or through the internal registers. Refer to the datasheet for the specific configuration settings for different data rates, such as 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 12 Gbps.
The power consumption of the TMDS1204RNQT varies depending on the data rate, supply voltage, and operating conditions. Typically, the power consumption is around 1.2 W at 12 Gbps and 1.8 V supply voltage. Refer to the datasheet for the detailed power consumption specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMDS1204RNQT Overview

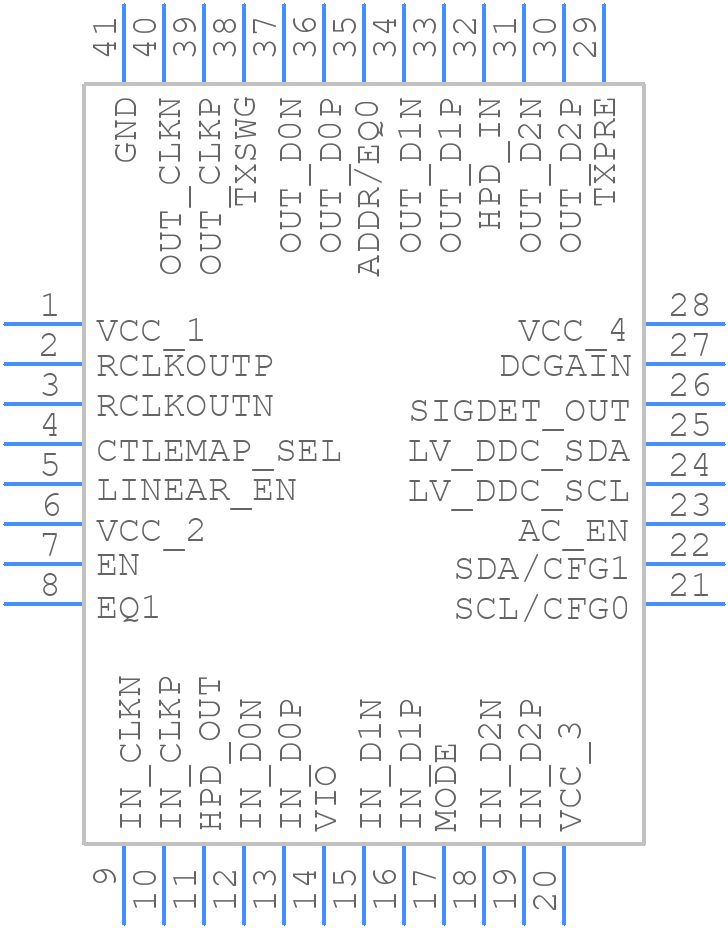

Use the download button to access the TMDS1204RNQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMDS1,
or try a keyword search, such as Line Driver or Receivers
