- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TMDS442PNPR
- Part Number TMDS442PNPR
- Manufacturer Texas Instruments
- Pin Count 129
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

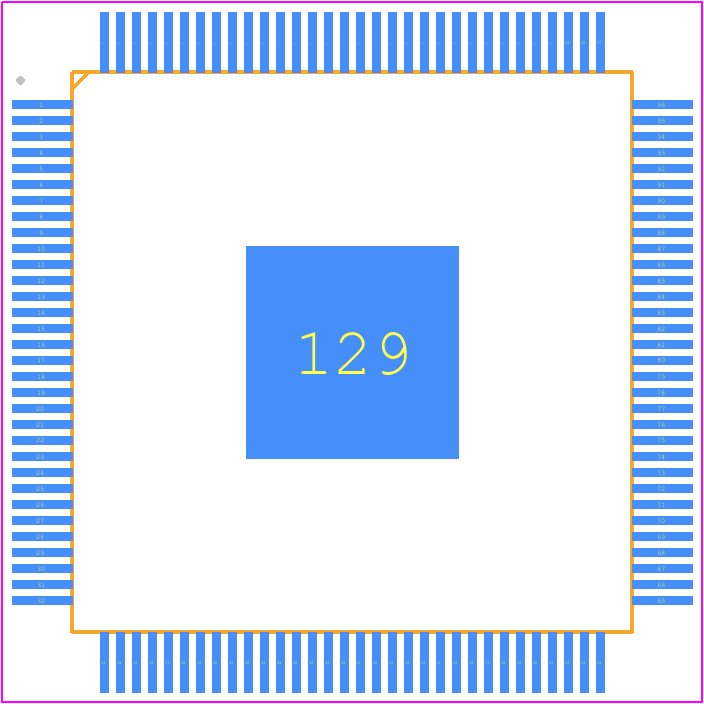

- Footprint Name Quad Flat Packages - PNP(S-PQFP-G128)_2021
- Released Date Jan 25, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMDS442PNPR Details
-
Manufacturer Part Number:
TMDS442PNPR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
128
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TMDS442PNPR Frequently Asked Questions (FAQs)
-
A good PCB layout for the TMDS442PNPR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the connector. Additionally, using a shielded cable and connector can help reduce EMI.
-
To ensure signal integrity with the TMDS442PNPR, use a controlled impedance PCB design, keep the signal traces as short as possible, and use a termination resistor at the receiving end. Also, ensure that the signal amplitude and frequency are within the device's specifications.
-
The maximum cable length supported by the TMDS442PNPR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at data rates up to 3.125 Gbps.
-
To troubleshoot issues with the TMDS442PNPR, start by checking the power supply voltage and ensuring that it is within the recommended range. Then, verify that the input signals are within the specified amplitude and frequency range. Use an oscilloscope to check the signal integrity and look for any signs of signal degradation or distortion.
-
The TMDS442PNPR is rated for operation up to 85°C, but it can be used in high-temperature environments with proper thermal management. Ensure that the device is properly heatsinked and that the ambient temperature is within the recommended range.
Trust Checks
Community Provided
System Verified
Community Approved
TMDS442PNPR Overview
Use the download button to access the TMDS442PNPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMDS4,
or try a keyword search, such as Other Consumer ICs
