TMP1075DGKT - Texas Instruments

Description: High Accuracy Upgrade to Industry Standard LM75 / TMP75 I2C Temperature Sensor

Download TMP1075DGKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

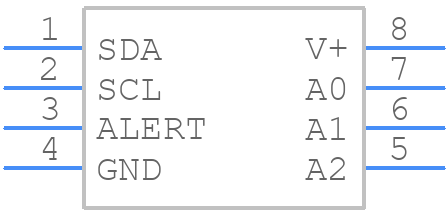

TMP1075DGKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP1075DGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMP1075DGKT - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMP1075DGKT Details

  • Manufacturer Part Number:

    TMP1075DGKT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.07 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.004 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP1075DGKT Frequently Asked Questions (FAQs)

  • The TMP1075DGKT has an accuracy of ±1°C from -20°C to 100°C and ±2°C from -40°C to 150°C.
  • The TMP1075DGKT can be configured for remote temperature sensing by connecting the remote diode to the VDD pin and the local diode to the GND pin. The remote diode should be connected to the remote temperature sensing point.
  • The maximum cable length for remote temperature sensing is 10 meters (33 feet) for a 20 AWG wire. However, the actual cable length may vary depending on the specific application and noise environment.
  • To handle noise and EMI, use a shielded cable, keep the sensor away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise.
  • The TMP1075DGKT has a typical power consumption of 1.5 μA in shutdown mode and 250 μA in active mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP1075DGKT Overview

Use the download button to access the TMP1075DGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP10, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
