TMP1826NGRR - Texas Instruments

Description: Board Mount Temperature Sensors 1-Wire +/-0.2C accurate digital temperature sensor with 2-kbit EEPROM

Download TMP1826NGRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

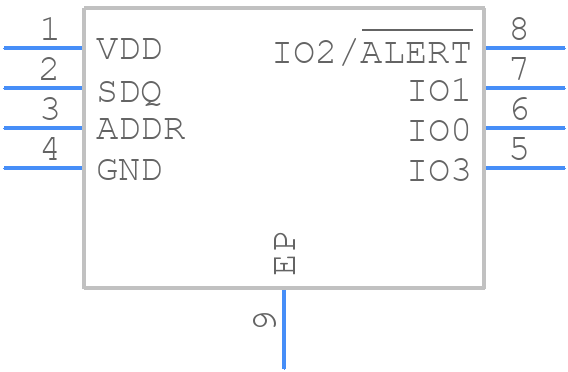

TMP1826NGRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP1826NGRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGR0008C
click to zoom
3D Models
TMP1826NGRR - Texas Instruments - 3D model - Small Outline No-lead - NGR0008C
click to zoom

TMP1826NGRR Details

  • Manufacturer Part Number:

    TMP1826NGRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.2 Cel

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.725 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.154 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP1826NGRR Frequently Asked Questions (FAQs)

  • The maximum power consumption of the TMP1826NGRR is 1.5mA, which is specified in the datasheet. However, it's worth noting that the power consumption can be reduced by using the shutdown mode or by adjusting the conversion rate.
  • The TMP1826NGRR has an accuracy of ±1°C from -20°C to 70°C and ±2°C from -40°C to 125°C. This is specified in the datasheet, but it's worth noting that the accuracy can be affected by factors such as self-heating, noise, and calibration.
  • Yes, the TMP1826NGRR can be used in high-temperature applications up to 125°C. However, it's essential to ensure that the device is properly calibrated and that the temperature measurement is within the specified accuracy range.
  • The TMP1826NGRR does not require calibration, as it is a digital temperature sensor with an internal calibration. However, it's recommended to perform a system-level calibration to ensure that the temperature measurement is accurate and reliable.
  • The response time of the TMP1826NGRR is typically around 30ms, but it can vary depending on the conversion rate and the specific application. It's essential to consider the response time when designing the system to ensure that the temperature measurement is accurate and reliable.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP1826NGRR Overview

Use the download button to access the TMP1826NGRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP18, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
