TMP1827NGRR - Texas Instruments

Description: Board Mount Temperature Sensors 1-Wire®, +/-0.2°C accurate digital temperature sensor with authentication, 2-Kbit EEPROM 8-WSON -55 to 150

Download TMP1827NGRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

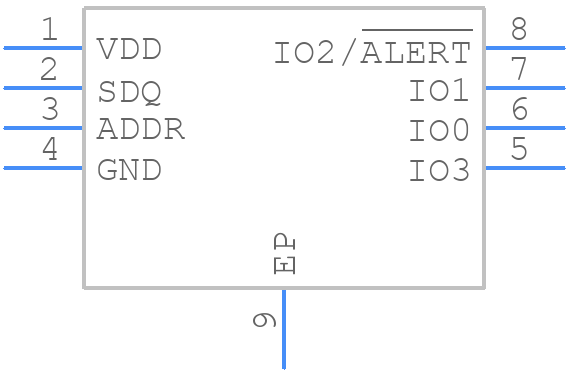

TMP1827NGRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP1827NGRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGR0008C
click to zoom
3D Models
TMP1827NGRR - Texas Instruments - 3D model - Small Outline No-lead - NGR0008C
click to zoom

TMP1827NGRR Details

  • Manufacturer Part Number:

    TMP1827NGRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.2 Cel

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.725 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.154 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP1827NGRR Frequently Asked Questions (FAQs)

  • The maximum power consumption of the TMP1827NGRR is 1.5mA, which is specified in the datasheet as the maximum quiescent current (IQ) at 3.3V supply voltage.
  • The TMP1827NGRR has an accuracy of ±1°C over the temperature range of -20°C to 100°C, and ±2°C over the extended temperature range of -40°C to 125°C.
  • Yes, the TMP1827NGRR can be used in a multi-drop bus configuration, but it requires an external pull-up resistor on the SDA line to ensure proper communication.
  • The maximum cable length for the I2C interface of the TMP1827NGRR is dependent on the system design and the capacitance of the bus, but a general guideline is to keep the cable length below 10 meters to ensure reliable communication.
  • No, the TMP1827NGRR does not have built-in thermal protection. It is designed to provide temperature monitoring and alert functions, but it does not have the capability to shut down or protect the system in case of overheating.
